Kahler "Standard Cam String Hook" FTW

Post by m-m-m on Thu Dec 23, 2010 2:11 am

So, we're all familiar with the problems with the Bendmaster FT and replacing the "string claws" (as they've been called here recently) that hold the ball end. When you've got a broken one you can loop the string around and through the ball end, but you end up loosing the fine tuning and it's kind of a pain in the ass to get right. Recently I found a bridge similar to the Bendmaster FT, so I took apart both bridges as a first step to see what I could do with them. Follow this link for the full story if you wish

It had been about 5 years since the last time I disassembled the BM, and forgot that one of my "string claws" was different from the others, meaning that it was a replacement!

I restarted my search for a replacement. I found lots of bridges that use "string claws": Gibson TP-6 and various Schaller models are out there, but can't find any parts for them. Eventually I started looking at kahler trems and found a link to a site called wammi world. After doing some reading I found a link for this part - the Standard Cam String Hook!.

I compared the one that's been on my Low E for as long as I've owned the trem, and I'm sure that it's the same thing.

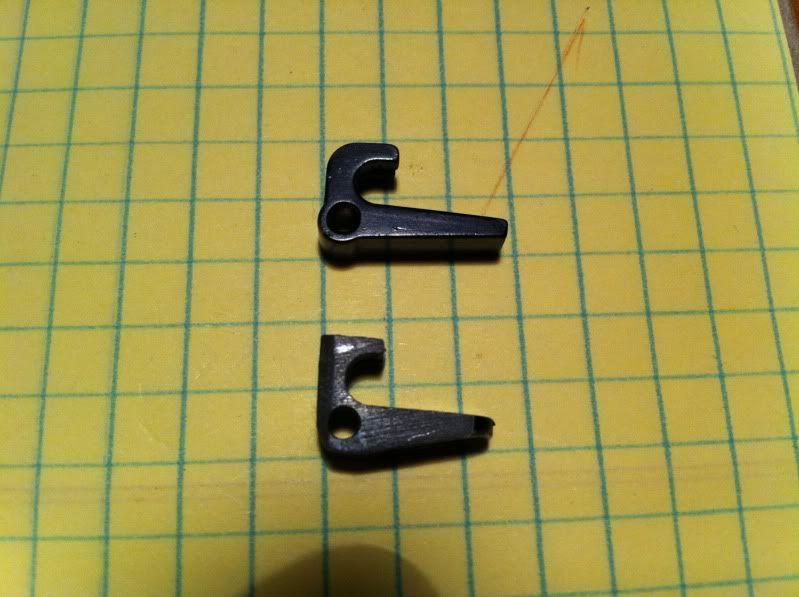

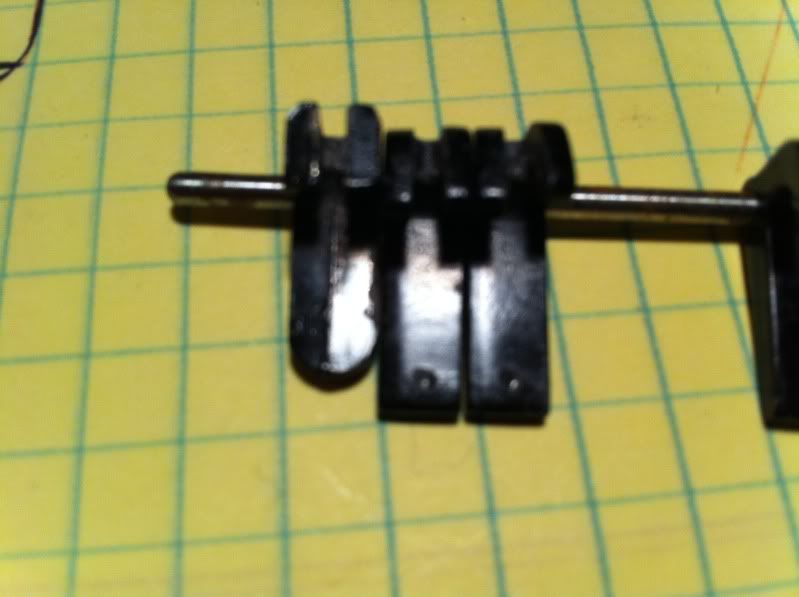

here's a shot of the westone version on top and the kahler version on bottom

So you can obviously tell that the Kahler hook is a bit shorter. Good news is that it's long enough for it to make contact with the end of the fine tuner adjustment screw and function. This next shot came out a bit blurry, but the Kahler hook is on the high E (the rounded one) next to a westone one on the B.

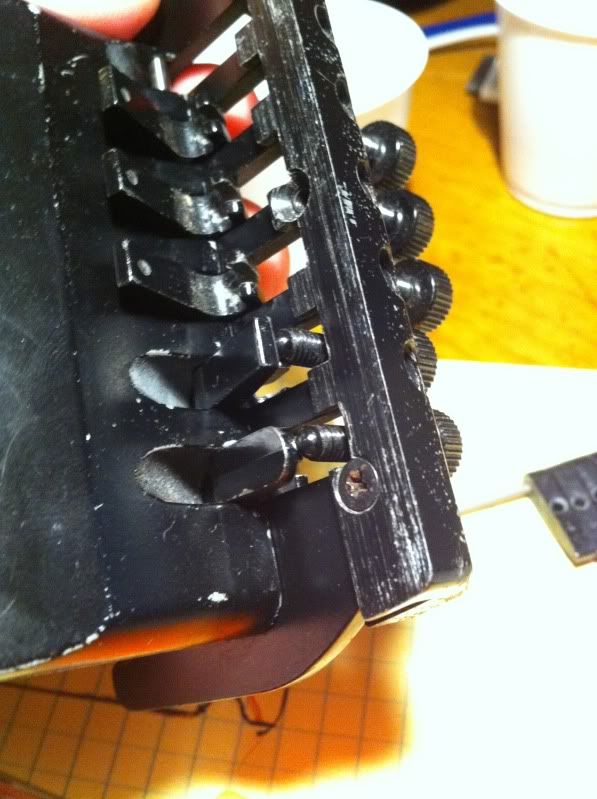

If it weren't for the fact that the kahler hook has been on my guitar and functioning for the past 8 years, I might be concerned about it's length. The fact is that it works. Keep in mind that I've never used the whammy on my Westone, and I don't use the fine tuners much either ... as always your mileage may vary. But I can tell you one thing for sure, even if you remove the fine tuner screw the kahler will work and hold the ball end of the string.

Wammi World appears to ship worldwide, but I've also found a European supplier as well -
Banzai Music out of Germany (NOTE: the part number from banzai is the same as the one from wammi world except it has an 'X' after it ... not sure if that's significant or not. Both parts look the same from the pictures.)

I plan on ordering a couple in the morning. I wouldn't be completely surprised if I had to grab my drill and ream the hole on the hook out a bit, but I'm hoping that won't be necessary. I'll keep everyone posted. Very Happy

UPDATE!
I just got mine in, and it looks like I'll have to get out a couple of small files and make them just the slightest bit narrower to get them to work. Less than a 1/64th of an inch, I'm sure. I'd be more precise, but I don't own dial calipers.


Last edited by m-m-m on Sat Jan 01, 2011 1:21 pm; edited 1 time in total
