Bendmaster Deluxe saddle...

Post by corsair on Fri May 13, 2011 6:56 am

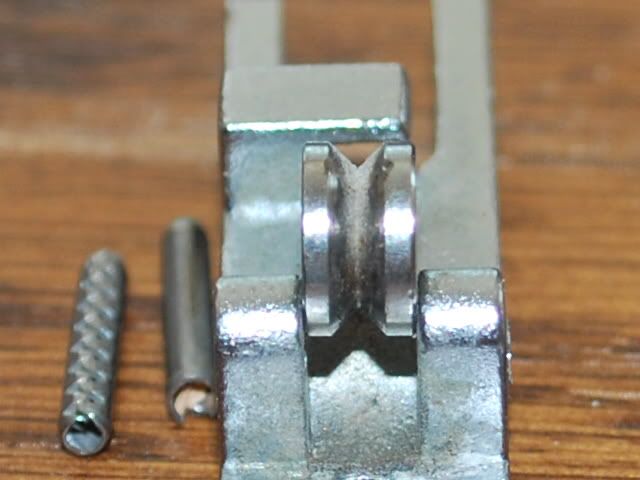

I've always been puzzled by the roller saddles that don't roll, and whilst I mentioned it and had a play with them 2 or 3 years ago, I have the opportunity now to have a really good look at the engineering involved.



They won't - as they're fitted - rotate about the axle. Simple as that, and the reason might be because the engineers who designed and built this may have considered that a rotating wheel is going to cause quite some wear on either the axle or the hole through the saddle with the attendant problems down the track a ways, and preferred the string just to move across the roller surface which I'm quite positive is a very high grade hardened steel. I reason this because I cannot ream the hole out with any of the bits I have available to me here; in fact putting the bit to the hole results in a blunt bit very, very quickly indeed. I'm NOT going to touch this to a grinder to see what sort of sparks I get!!!

So the wheel is an interference fit in the bracket, and the roll pin is an interference fit in both the wheel and the bracket...







They are roller saddles which are not designed to actually roll; more accurate perhaps to call them barrel saddles!!!

Discuss.... Laughing

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Bendmaster Deluxe saddle...

Post by Iceman on Fri May 13, 2011 7:51 am

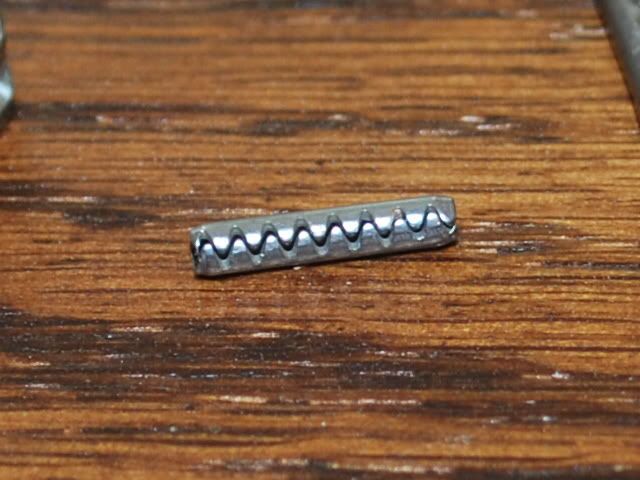

Where in the assembly did you pull that spring pin from?

Iceman
Hero, Legend, and all round good guy

Number of posts : 2859
Age : 53
Location : Up North
Registration date : 2011-02-22

http://www.glowingtubes.com/p/Kahler_Instructions.htm

Back to top Go down

Re: Bendmaster Deluxe saddle...

Post by corsair on Fri May 13, 2011 9:13 am

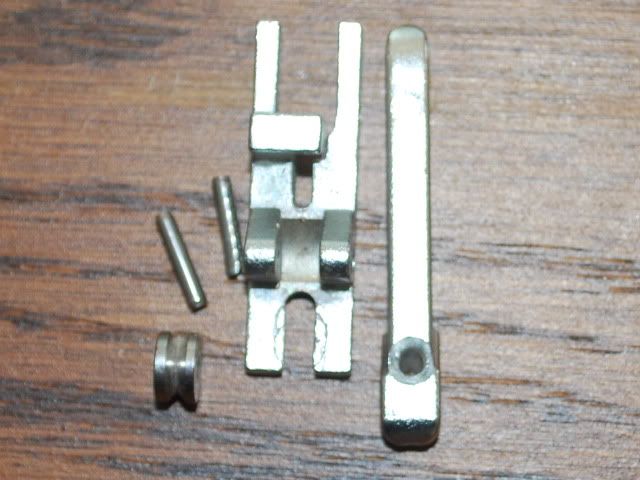

The roll pins hold the roller and the adjustment lever in the housing; I used a 1.6mm parallel pin punch to drive 'em out....

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Bendmaster Deluxe saddle...

Post by Iceman on Fri May 13, 2011 4:22 pm

Well then, if those are the stock components there is no chance it was designed to rotate, unless the engineer was a real stooge. Judging by the overall quality of the Mats as a whole I find that possibility remote at best.

Spring or roll pins are designed to be pressed or tapped into an interference fit to then internally expand in whatever direction the apeture has been machined to. Unless this has been reworked or doctored to fix a past failure.

Was this off that bridge you recently bought on e(vil)bay from drdave?? I have recently learned he is not the best technician out there, if one at all. Evil or Very Mad Mad Evil or Very Mad

Iceman
Hero, Legend, and all round good guy

Number of posts : 2859
Age : 53
Location : Up North
Registration date : 2011-02-22

http://www.glowingtubes.com/p/Kahler_Instructions.htm

Back to top Go down

Re: Bendmaster Deluxe saddle...

Post by corsair on Fri May 13, 2011 5:02 pm

Yep; that's the one!! I'm trying to bludge the posts off him but he's being a little resistant!! Laughing I had no troubles getting the bridge here; he was very good with communication and postage - I was quite impressed to be honest. Sorry to hear you've got troubles...

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Bendmaster Deluxe saddle...

Post by Iceman on Fri May 13, 2011 11:15 pm

Nay, he was a great seller to deal with but I certainly wish he hadn't attempted to resolder whichever loose wires he did on that Genesis I bought from him. Westbone and I have been pm'ing merrily to and fro in a vain attempt to figure it out and in the end only traced down a half dead humbucker as a reward. Not sure if it was DOA or his wiring "fix" did it in. The humbucker only worked with the coiltap pulled out which I always understood to effect the short which split the pup.

Oh well, Seymour Duncan.... into the breach!!

Iceman
Hero, Legend, and all round good guy

Number of posts : 2859
Age : 53
Location : Up North
Registration date : 2011-02-22

http://www.glowingtubes.com/p/Kahler_Instructions.htm

Back to top Go down

Re: Bendmaster Deluxe saddle...

Post by corsair on Tue Jul 14, 2015 10:46 pm

OK, a small bump here...

... can anyone see a reason why I cannot take the  wheels out of their saddles, relieve the metal on the saddle supports to allow the thing to spin, and then drill out the centre hole in the wheel so that it can revolve around the rollpin??

I can see why they didn't do it at the factory as the time involved in fine tuning the bridges would add to the retail price, perhaps not a lot but enough to warrant not doing it.

I'll do one and report back...

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Bendmaster Deluxe saddle...

Post by Westbone on Tue Jul 14, 2015 11:34 pm

corsair wrote:OK, a small bump here...
 relieve the metal on the saddle supports to allow the thing to spin, and then drill out the centre hole in the wheel so that it can revolve around the rollpin??
By doing what you describe above will make the whole thing a sloppy fit.
Considering a rollpin is not 100% round but is  basically a  spring pin it needs to be under pressure.

The rollers are not a tuning problem so whats the point?

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Bendmaster Deluxe saddle...

Post by corsair on Wed Jul 15, 2015 2:21 am

Yes, I know what a rollpin does and why, and I also wonder if doing what I'm planning to do will affect tuning stability or intonation but we'll soon see, won't we?! I have 3 spare bridges and some time on my hands so now's as good a time as any for a play!

The point is that roller saddles and nuts seem to be de rigueur presently and I'm just wondering if I can make a BD a proper roller bridge. Does it not seem a little strange to you that the talented engineers at Matsumoku did good things generally but chose to make a pseudo-roller bridge??

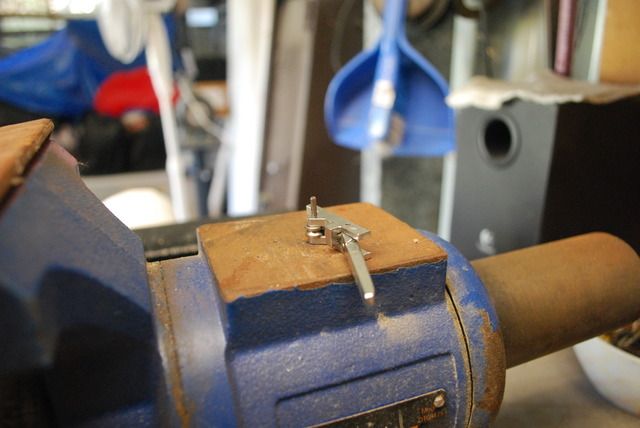

Anyway, the saddle as it came out of a plastic bag....

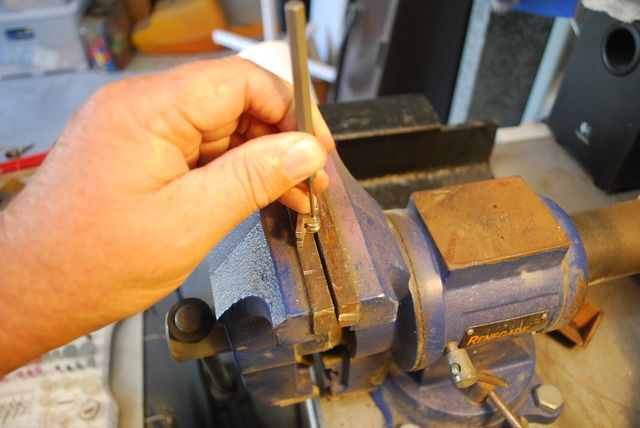

...driving out the rollpin with a 1.2mm pin punch

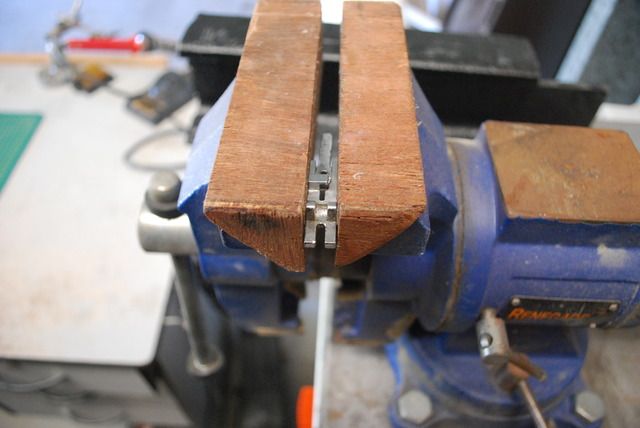

... saddle held in vice for filing the roller supports back a tiny amount

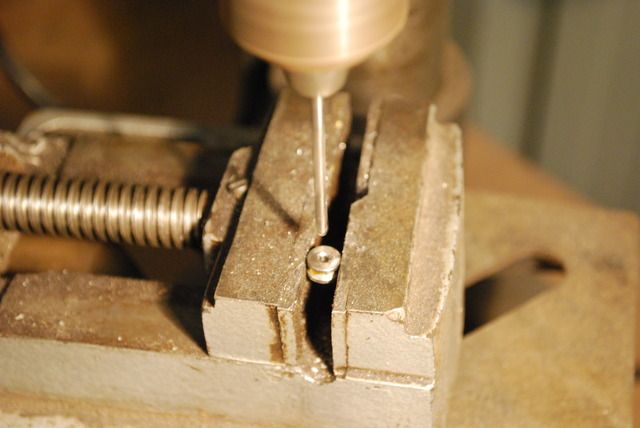

... drilling out the roller so that it will actually roll. The bit is 2.5 thou greater in width than the diameter of the pin...
