Help identifying guitar

Post by BrunoB on Wed Oct 26, 2011 3:55 pm

Hi Everybody,

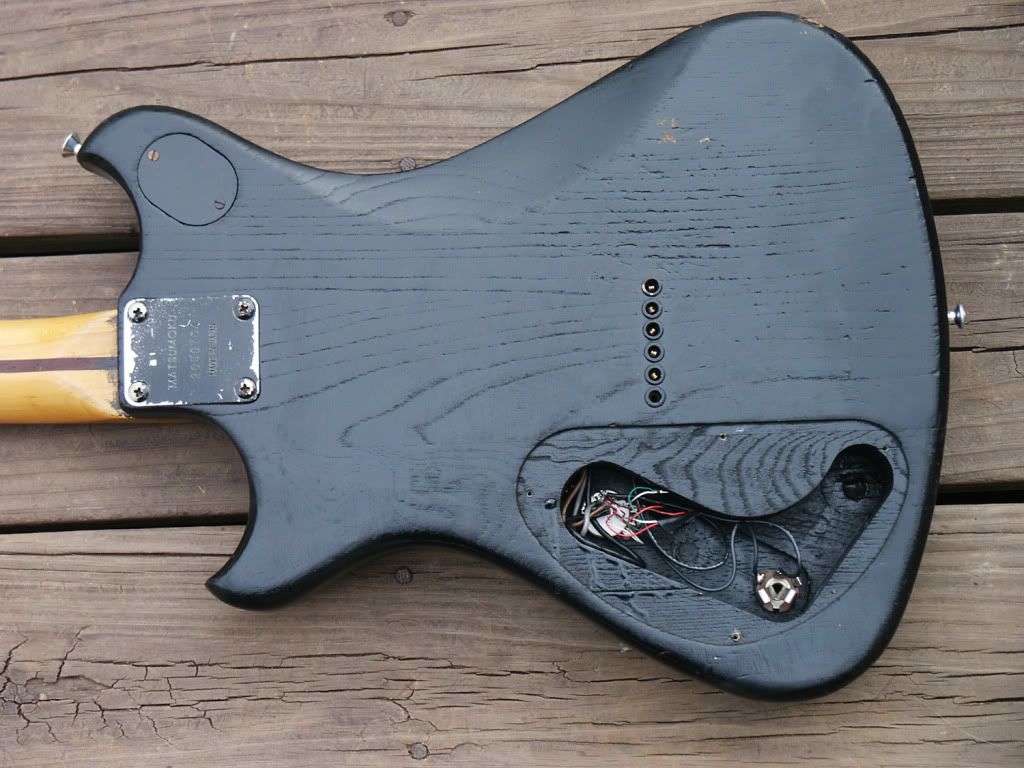

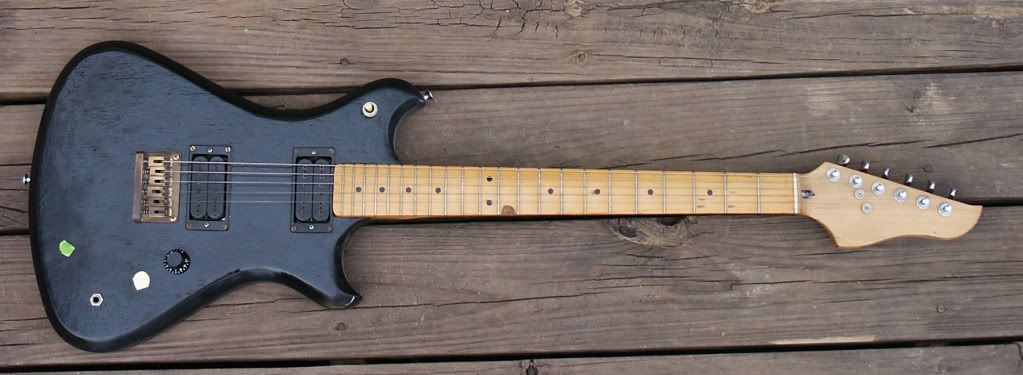

I just joined this forum after my wife bought me this $15.00 yard sale special. The neck plate has Matsumoku 2050704 Made In Japan on it. I believe maybe it is a Westone Paduak II. It appears that the two tone controls were removed and the input jack moved to the second tone control position. The yellow paper is where one tone control was and the green paper is where I believe the input jack was originally. The pickups have 53 stenciled on the back of them. From the little information that I can find I would have thought they would have 45 on them, plus they are black and in the pictures I have found they are white. Anyway, any help in identifying this guitar and if anybody knows the correct wiring, pots, etc., I would really appreciate it. I am going to try to get the paint off and restore it. Thanks for your help.

Bruno


[img][/img]

BrunoB
Registered Member

Number of posts : 6
Registration date : 2011-10-26

Back to top Go down

Re: Help identifying guitar

Post by hoax on Wed Oct 26, 2011 4:44 pm


Great score - It looks like a Paduak to me. Well done!!

Hoax

hoax
Financial supporter

Number of posts : 1104
Age : 57
Location : Bothwell
Registration date : 2009-09-01

Back to top Go down

Re: Help identifying guitar

Post by Guest on Wed Oct 26, 2011 4:49 pm

Looks like a Paduak that someone sprayed black. I personally like the MMK53's better than the MMK 45's. I'm sure you could make a few bucks on the pickups alone if you wanted.

Guest
Guest


Back to top Go down

Re: Help identifying guitar

Post by Westbone on Wed Oct 26, 2011 5:22 pm

I've seen them with black pups before, they did them with both.
How many wires you got coming out of the pups? and what colours?

Only looks like 3 in the pics. If you want a set of 45's 4 wired up I;ll swap you for the 53's. Smile
That's if you want to restore it. You'll need PEQ conrols, hence a 4 wired pup.
If you don't want PEQ a pull/push switch does the same thing. Series/parallel switching.

Quite a rare guitar

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Help identifying guitar

Post by grogg on Wed Oct 26, 2011 5:56 pm

To me thats a fab buy, well worth restoring.

grogg
Senior Member

Number of posts : 1076
Location : Cardiff
Registration date : 2008-11-28

Back to top Go down

Re: Help identifying guitar

Post by Barry on Wed Oct 26, 2011 6:06 pm

I'll echo what's been said already BrunoB. That's a terrific score!
Underneath all that ugly black paint is less ugly Paduak clown
Enjoy!

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6016
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: Help identifying guitar

Post by corsair on Wed Oct 26, 2011 6:26 pm

.... only marginally less ugly!! Laughing Great score; restore it!! Keep the 53s in it as they may well have been OEM!!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5206
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Help identifying guitar

Post by mortarman120gang11c on Wed Oct 26, 2011 6:30 pm

Great find. I am certain you will find some nice wood underneath the black paint. Good luck with the restoration and thanks for the pics. Keep us posted on the progress.

mortarman120gang11c
Financial supporter

Number of posts : 703
Location : Georgia USA
Registration date : 2011-04-09

Back to top Go down

Re: Help identifying guitar

Post by Westbone on Wed Oct 26, 2011 7:08 pm

corsair wrote:.... only marginally less ugly!! Laughing Great score; restore it!! Keep the 53s in it as they may well have been OEM!!

Better than a pointy thang! Razz

Not if they only have 3 wires??

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Help identifying guitar

Post by BrunoB on Wed Oct 26, 2011 7:32 pm

The pickups only have 3 wires. A white one, a red one, and the bare one. I'm a little electronically challenged. So did the Paduak II have 4 wires and the tone controls were push/pull for series/parrael? Is that the PEQ that Westbone was referring to? Thanks guys.

Bruno

BrunoB
Registered Member

Number of posts : 6
Registration date : 2011-10-26

Back to top Go down

Re: Help identifying guitar

Post by Westbone on Wed Oct 26, 2011 7:54 pm

Looking at yours it's obviously been messed with.

PEQ worked on a stacked pot turning from centre(series) to fully clockwise(parallel)
Turning from centre to anticlockwise acted like a normal tone control. They had a centre detent.

It seems most likely your pups have been changed as you've only red + white plus common.
Here's a link.
http://www.westoneguitars.net/wp-content/uploads/2011/05/071.jpg

You can have the same effect with a pull/push control but no gradual change, gradual change didn't work all that well anyway. Still can be done though with a stacked pot. Pull/push is just an option but you'll need 4 wires plus a bare(sheild, common,earth)

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Help identifying guitar

Post by hobster on Wed Oct 26, 2011 10:06 pm

Wow, what a great find. Excellent price :!: :!: I didn't know they had 53's in 1982. Should be a very cool project, have fun with it.

hobster
Senior Member

Number of posts : 678
Age : 47
Location : Eugene, Oregon
Registration date : 2009-08-16

Back to top Go down

Re: Help identifying guitar

Post by Barry on Thu Oct 27, 2011 9:01 am

BrunoB, in case you haven't seen it already here is a link to some info on our website: Paduak

And concerning restoring the PEQ, it occurred to me that Paul Reid Smith uses a similar 'varitone' type of system which might serve as a replacement. I've only come across it in trying to sort out a customer's botched attempt at installing some EMG's. We do have one working PRS in the shop with the same circuit but I've never installed one. Anyone have any direct experience with this control? Damian?

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6016
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: Help identifying guitar

Post by colt933 on Thu Oct 27, 2011 9:51 am

Barry wrote:BrunoB, in case you haven't seen it already here is a link to some info on our website: Paduak

And concerning restoring the PEQ, it occurred to me that Paul Reid Smith uses a similar 'varitone' type of system which might serve as a replacement. I've only come across it in trying to sort out a customer's botched attempt at installing some EMG's. We do have one working PRS in the shop with the same circuit but I've never installed one. Anyone have any direct experience with this control? Damian?

No direct experience, but I believe it uses a rotary switch to move through series and parallel modes on the humbuckers.

The Seymour Duncan website has a fabulous collection of wiring diagrams for just about any configuration from the simple one knob to the supremely complex and ultra-flexible.

I wired my strat using a hybrid of a couple of their diagrams - first tone knob controls neck and middle, second controls bridge (where you desperately need it but where Fender has not seen fit to allow for 60+ years), and a push/pull on the second tone to turn the bridge pickup on or off. So I can have all 3 pickups on at once (5-way position neck/middle position + pull-up on tone knob) or bridge and neck (5-way neck position + pull up on tone knob) like a TELE. And with the push/pull down, the 5-way is just a 5-way. I never really liked or used the bridge pickup on strats until I put a tone knob on it. Pretty neat IMHO.

Sorry to hijack the thread.

colt933
Senior Member

Number of posts : 583
Registration date : 2008-04-08

Back to top Go down

Re: Help identifying guitar

Post by Westbone on Thu Oct 27, 2011 12:58 pm

The original type 'varitone' was just a rotary switch going through different capacitors. BB King style 335.
Don't know about the PRS switching. Presume 'varitone' would be something similar??? or it'd be a phase switch.


Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Help identifying guitar

Post by westcoaster on Thu Oct 27, 2011 1:24 pm

I've got an axl bass that has tone controls with centre detent. They seem to work similar to the peq controls. Next time I get the cover off I'll see if I can get any more info on them.

westcoaster
Senior Member

Number of posts : 462
Age : 51
Registration date : 2011-09-22

Back to top Go down

Re: Help identifying guitar

Post by The Chad on Thu Oct 27, 2011 2:28 pm

$15? You got a deal my friend.

If you're into wood grained, coffee table looking guitars, then refinish it. The black does look bad.

The Chad
Financial supporter

Number of posts : 2451
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Help identifying guitar

Post by PaulS on Fri Oct 28, 2011 8:10 am

I quite like the black Shocked . Sort of 1970s MFI unit look (that is possibly Anglocentric)

What about the chip in the fretboard? Is that an easy fix?

PaulS
Senior Member

Number of posts : 198
Location : North Thames Delta
Registration date : 2010-02-18

http://www.oasisdesigns.co.uk

Back to top Go down

Re: Help identifying guitar

Post by BrunoB on Fri Oct 28, 2011 10:40 am

The neck is not chipped. I think somebody had solvent and grime on their finger and touched the neck. It is like a fingerprint that took the varnish off and stained the neck. I will see if I can get the stain off.

BrunoB
Registered Member

Number of posts : 6
Registration date : 2011-10-26

Back to top Go down
