Sustain block....

Post by corsair on Sat Oct 13, 2012 8:24 am

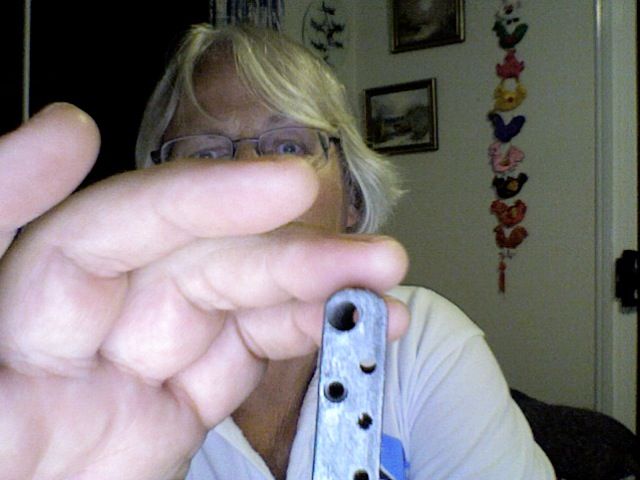

Righto, people; my Vantage Invader has a problem. No... not that it's pointy or anything along those lines, but that the sustain block has the wang bar hole drilled and tapped at an angle, not at 90° as you'd expect. Here's a piss poor photo of the offending piece; note the string hole is straight on (ish) but that the wang bar hole dives off to the right.





So, are these measurements that I've taken familiar to anyone, ie are they a standard size:
Overall width of block - 71.94mm
width excluding wang bar overhang - 61.91mm
Overall depth of block - 42.63mm
depth of wang bar overhang - 20.07
diameter of wang bar hole - 6.09mm
diameter of string holes - 3.27mm
diameter of bridge attachment screw holes - 4.88mm
distance between string hole centres - 10.3mm
distance between bridge attachment screw holes - 21mm

Any help/guidance/suggestions gratefully considered. It goes without saying that the block is muck metal and probably can't be filled, drilled and retapped!!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5248
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Sustain block....

Post by Barry on Sat Oct 13, 2012 6:24 pm

Geez, that's awfully close to breaking through the side of that block. Shocked
What the hell were they thinking?

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6119
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: Sustain block....

Post by corsair on Sat Oct 13, 2012 6:27 pm

Yeah; you can't tell me they meant to do that, eh!? Face Palm
