UBC p'ups....

Post by corsair on Sat Apr 27, 2013 9:14 am

Rightio, I've got my Spectrum ST in bits presently for a little TLC, and I recalled it had the plastic bottomed pickups, which were supposedly the "proper" UBCs.... possibly. Well, I was right; it does have the plastic bottomed pickups with Allen headed pole pieces - I'll post some pix when I get a chance - and I recall it being OK enough in output to have used it once or twice at a gig, but doing a quick and dirty impedance check reveals a reading of about 6.9 and 3.4Ω at the bridge and 6.7 and 3.3Ω at the neck, so the readings would seem to indicate weak output, the same as the ones that Barry and Damian decry.

Discuss... 😱

Anyway, I'm in the process of cleaning the poor old thing up a little so I'll add some detail pix later; it has loads of those stress type cracks in the finish and the nut has the deepest slots I've ever seen!


Edit....
I've just finished fettling my Vantage VA900, which has sat in its case, unloved and uncleaned from the last set of gigs I did.... 6 years ago!!! You interested in seeing the state it was in?! I feel ashamed just talking about it...😁😳

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5252
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: UBC p'ups....

Post by gittarasaurus on Sat Apr 27, 2013 11:28 am

the X125 i just acquired had a plastic bottom humbucker pickup
the German Catalog 1987 - X125 calls them Magnaflux I UBC
this one is wired with a gray covered cable having only a single conductor (white) with a shield.
it measures 6.15 k, no coil split wiring provided.

gittarasaurus
Financial supporter

Number of posts : 1218
Location : San Jose, CA
Registration date : 2011-05-25

Back to top Go down

Re: UBC p'ups....

Post by Barry on Sat Apr 27, 2013 12:19 pm

You're getting a bonus with 6.9 mate! All of mine clock in around 6.3'sh.
Get yourself a nice GFS Crunchy Pat and be wonderful! They're a pretty darn good replacement for the MMK45's.

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6128
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: UBC p'ups....

Post by Sgt. Vimes on Sat Apr 27, 2013 1:29 pm

Ive said it before and I'll say it again, I like the UBC's that were in my ST (plastic baseplates) they really do have a nice glassy tone when split, but their output, even for me (I play clean tones mostly) is just to weedy.

Yes please John, pix pix pix no matter how filthy.....

Sgt. Vimes
Financial supporter

Number of posts : 3111
Age : 45
Location : tyneside
Registration date : 2011-11-03

Back to top Go down

Re: UBC p'ups....

Post by Barry on Sat Apr 27, 2013 4:26 pm

pix pix pix no matter how filthy.....


Oh...you...mean...the guitar

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6128
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: UBC p'ups....

Post by Iceman on Sat Apr 27, 2013 7:48 pm

John, you do remember the snafu that Thorny discovered with sub-standard pots being installed in more than one if his Electras... which several other of the lads over there confirmed as well?

http://www.rivercityamps.com/electraforum/viewtopic.php?f=26&t=6958

Is it crazy to surmise that a similar gremlin could be at work in some Westies causing this weak output?

Iceman
Hero, Legend, and all round good guy

Number of posts : 2859
Age : 53
Location : Up North
Registration date : 2011-02-22

http://www.glowingtubes.com/p/Kahler_Instructions.htm

Back to top Go down

Re: UBC p'ups....

Post by Barry on Sat Apr 27, 2013 8:18 pm

Iceman wrote:...sub-standard pots...Is it crazy to surmise that a similar gremlin could be at work in some Westies causing this weak output?
Very doubtful. My pups were measured in isolation, i.e., after removal from the guitar. Neutral

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6128
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: UBC p'ups....

Post by Westbone on Sat Apr 27, 2013 8:24 pm

The lower the pot value the more bass/mids you'll hear. The ubc's are shrill sounding because of the low output pup with 500k pots letting even more treble through.
You'd be better off with 250k pots on the ubc's

Westbone
Financial supporter

Number of posts : 4860
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

My poor, old VA900....

Post by corsair on Sun Apr 28, 2013 4:01 am

... is in dire need of some TLC!! I took it out for
those pix I posted and realised that I hadn't touched it for about 5 years
and hadn't cleaned it the last time I played it and put it away...

Yukky!!!

So... while I had it pulled apart, here are some pix...

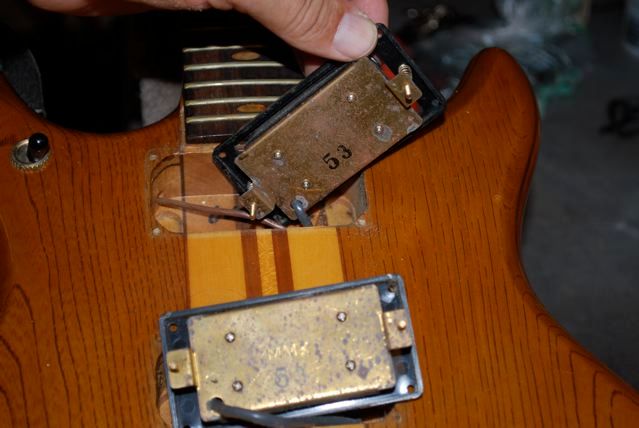

MMK 53s, neck and bridge. For some reason I thought it had a 61 an a 53... what a dickhead!!

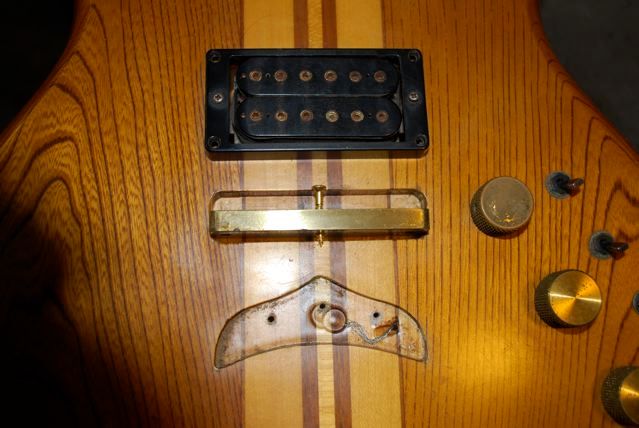

that brass bridge plate is 9mm thick and checked in flush with the surface...



Cowboy chord area is deeply gunked up... it's like that to about the 15th fret!

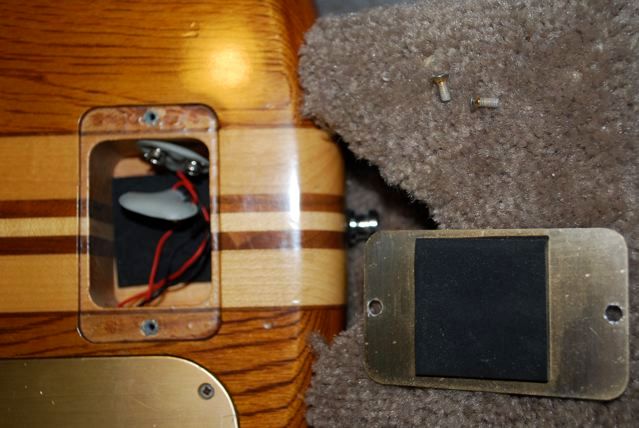

Mine has a separate battery compartment, which incidentally, was used once, in 1981 and hasn't been since!

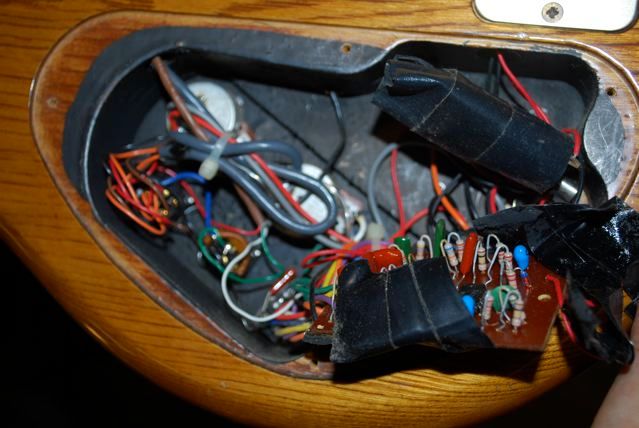

The rats nest that is the control cavity. Note that the circuit board has never been attached to the cover plate...

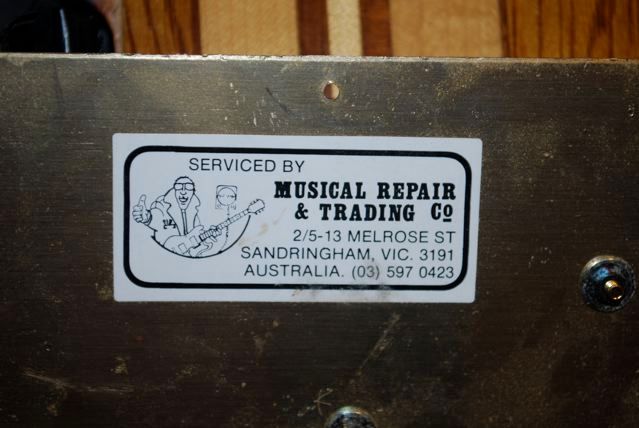

Importers sticker on the inside of the cover plate...

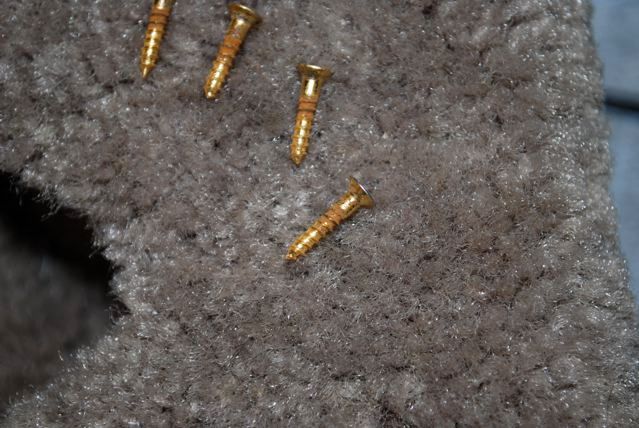

cover plate screws; note corrosion where the alloy plate meets the steel screws!!

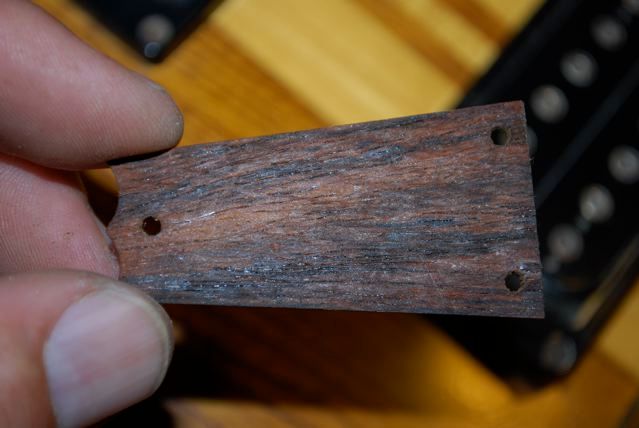

TRC. Mahogany, perhaps?!

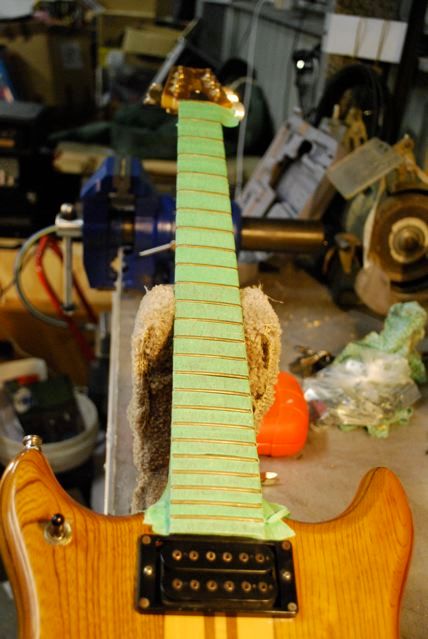

I
don't think the frets will take another dressing, so a quick polish is
about as much as it's gonna get!! I remember it being as slick as
gorilla snot to play...

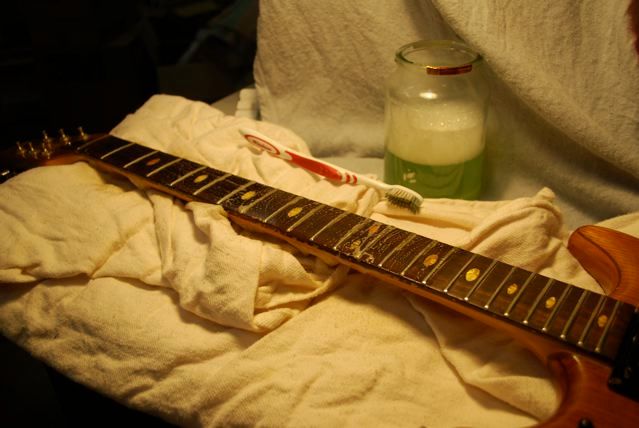

Cleaning the gunk off the board...
