Early active gain circuitry

Post by Catalyst on Mon Jul 21, 2014 4:29 pm

Hi gents, I know Sarge has only recently been after one of these  - just wondered if anyone else had one spare that wasn't being used?

Cash waiting...or maybe swap for MMK pups etc?

If none spare then a heads up as to a suitable solution on fleabay etc would be really appreciated.

Thanks in advance.

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Clive Shakedown on Tue Jul 22, 2014 5:08 am

Hello mr lyst. I have one from a thunder 1a 6 string, although I don't know the date or if it works! I also have one ( I think) from a thunder bass, maybe you could post a pic and I can see if mine matches up?

Clive Shakedown
Senior Member

Number of posts : 132
Age : 56
Location : UK
Registration date : 2013-07-28

Back to top Go down

Re: Early active gain circuitry

Post by Clive Shakedown on Tue Jul 22, 2014 5:10 am

Ps, I am talking about just the small circuit board in the control cavity, there are no wires or controls attached.

Clive Shakedown
Senior Member

Number of posts : 132
Age : 56
Location : UK
Registration date : 2013-07-28

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Tue Jul 22, 2014 6:29 am

Thanks for the reply Clive.

I think it should look like this...
http://www.westoneguitars.net/wp-content/uploads/2011/05/Thunder-IIA-wiring-version-1.jpg

If the Thunder was from '81 or '82 then it could well be the right one.....maybe someone could clarify this for me?

I assume once we have the board the rest is a wiring issue.

Cheers Clive...much appreciated.

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Tue Jul 22, 2014 6:31 am

better picture here....
http://www.westoneguitars.net/fixme/wiring-diagrams/thunder-series%E2%80%94active-models/thunder-active-guitar%E2%80%94trouble-shooting-circuit-version-1/

...maybe even an early '83 would be ok?

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Clive Shakedown on Tue Jul 22, 2014 7:59 am

Ok, I have a feeling it may be an 83, it has no neck or date stamp but will try to match it up to your photo later tonight.

Clive Shakedown
Senior Member

Number of posts : 132
Age : 56
Location : UK
Registration date : 2013-07-28

Back to top Go down

Re: Early active gain circuitry

Post by Clive Shakedown on Tue Jul 22, 2014 12:13 pm

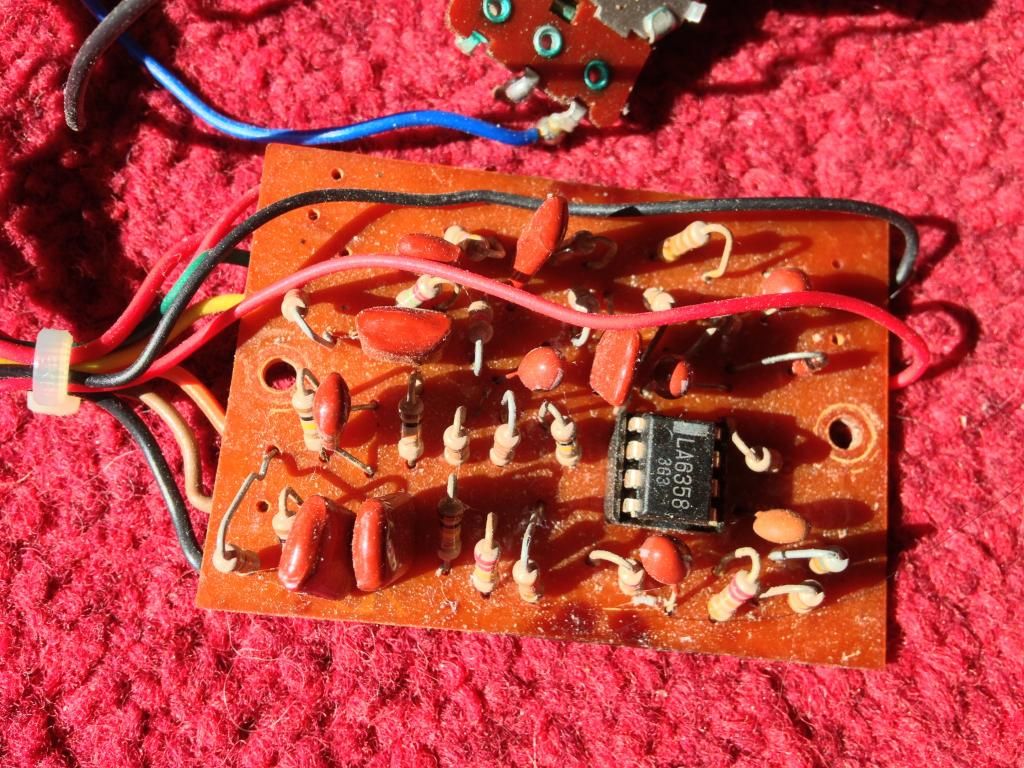

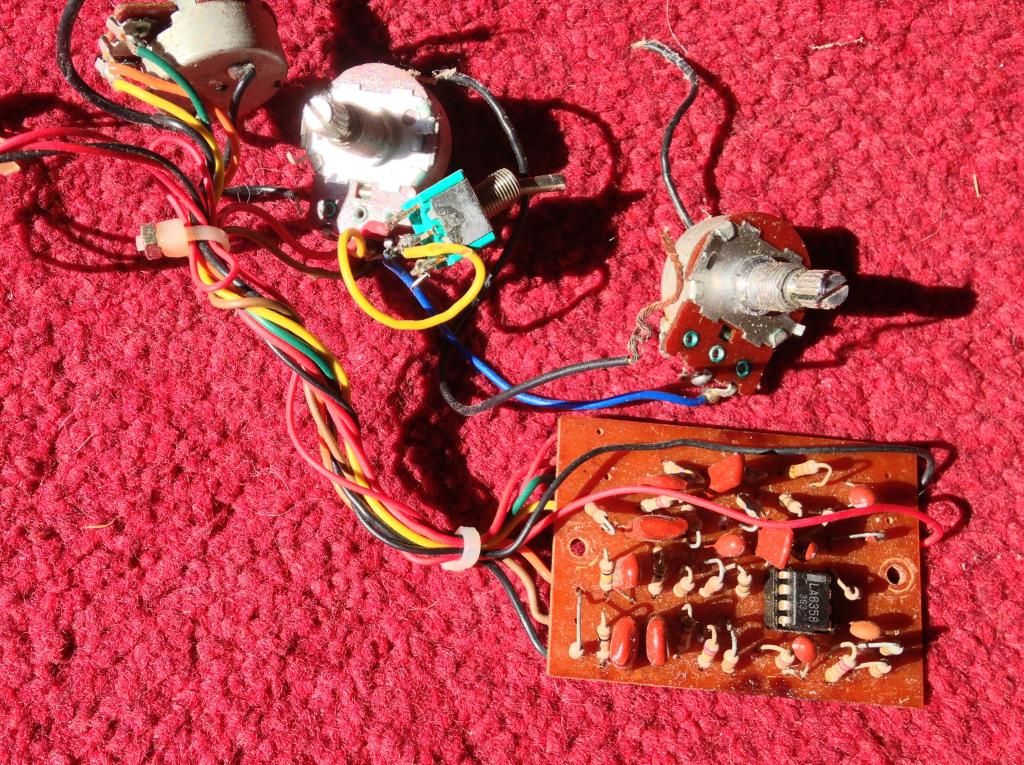

Here are a couple of pics for you, the chip?? has different numbers on it to the one in your photo, but all the bits look to be in the same place, sort of, oh yes, it has got the wires on!

I thought it was jut the board.


Clive Shakedown
Senior Member

Number of posts : 132
Age : 56
Location : UK
Registration date : 2013-07-28

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Tue Jul 22, 2014 12:50 pm

Wow...that looks pretty damn close to me....

Would it be possible for someone with more electrical knowledge than I to confirm that this is the early active gain circuit...or course, whether it works or not is another issue  Laughing

If it is you've got yourself a sale mate....maybe we can sort the cash transaction bit out via pm?

Thanks again for the speedy reply, much appreciated.

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Sgt. Vimes on Tue Jul 22, 2014 1:28 pm

Yup, just checked these pics with one of my circuits and they match up dot for dot.
Good luck  Smile

Sgt. Vimes
Financial supporter

Number of posts : 3101
Age : 45
Location : tyneside
Registration date : 2011-11-03

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Tue Jul 22, 2014 2:23 pm

You Westone guys are the best... Thumb Up

PM on its way Clive...  Cool

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Sgt. Vimes on Tue Jul 22, 2014 2:31 pm

Yes, yes I am.  Very Happy

Sgt. Vimes
Financial supporter

Number of posts : 3101
Age : 45
Location : tyneside
Registration date : 2011-11-03

Back to top Go down

Re: Early active gain circuitry

Post by Clive Shakedown on Tue Jul 22, 2014 3:01 pm

Ian, I think I've sent a PM, although it doesn't show in my PM sentbox.
let me know if you don't get it!

Clive Shakedown
Senior Member

Number of posts : 132
Age : 56
Location : UK
Registration date : 2013-07-28

Back to top Go down

Re: Early active gain circuitry

Post by Sgt. Vimes on Tue Jul 22, 2014 3:03 pm

It will appear in your sent box once the recipient has read it, until then it will be in your out box.
 Wink

Sgt. Vimes
Financial supporter

Number of posts : 3101
Age : 45
Location : tyneside
Registration date : 2011-11-03

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Tue Jul 22, 2014 3:05 pm

It'll be in the sent box now.. message received and understood Clive.
....and even if it doesn't work I'll cover the postage etc.  Cool

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Clive Shakedown on Fri Jul 25, 2014 2:51 am

Ian.
Posted yesterday, let me know if you don't get it. Can't do pm on mobile for some reason!

Clive Shakedown
Senior Member

Number of posts : 132
Age : 56
Location : UK
Registration date : 2013-07-28

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Fri Jul 25, 2014 4:59 am

Cheers Clive...appreciated  Cool

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Mon Jul 28, 2014 8:19 am

Got the gear safe and sound Clive, very much obliged.  Very Happy

On closer inspection it seems that the loom and pots etc are set up for the Version 2 circuit i.e. eq tone pot instead of active gain pot and 6 point (terminology?) connector block beneath the active switch.

So my question is, are the main circuit boards interchangeable between the Version 1 and Version 2 if the wiring configuration is still achievable?

I definitely have the 12 point connector block beneath the active on/off switch....but not 100% sure if I have the 'active gain' pot?...that's assuming it is different from the EQ tone pot of course?

Any assistance from you knowledgeable gents would be really appreciated before I set fire to something   Laughing

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Clive Shakedown on Mon Jul 28, 2014 12:45 pm

No problem!
Afraid I can't help with the active circuits as I either never use them or pull them out completely!
I'm sure someone will be along with an answer soon.

Clive Shakedown
Senior Member

Number of posts : 132
Age : 56
Location : UK
Registration date : 2013-07-28

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Mon Aug 04, 2014 10:00 am

I think everyone is away on their summer holidays Clive...   Cool
...either that or I've stumped them all with my fiendishly difficult question...  Laughing

I'll give it another few days and then I'll don my wellies and make a tentative start.

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Clive Shakedown on Mon Aug 04, 2014 11:17 am

I have an active gain pot on some of my basses, the only difference I can see is the active gain has a center indent, are the wiring diagrams on this site no good to you?
Will take the back off a bass that is original tonight and take note of the active gain pot spec.

Clive Shakedown
Senior Member

Number of posts : 132
Age : 56
Location : UK
Registration date : 2013-07-28

Back to top Go down

Re: Early active gain circuitry

Post by Westbone on Mon Aug 04, 2014 11:39 am

It's all here .
http://www.westoneguitars.net/fixme/wiring-diagrams/thunder-series%E2%80%94active-models/

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Early active gain circuitry

Post by Clive Shakedown on Mon Aug 04, 2014 12:20 pm

Thanks Westbone.

Clive Shakedown
Senior Member

Number of posts : 132
Age : 56
Location : UK
Registration date : 2013-07-28

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Mon Aug 04, 2014 12:39 pm

I saw that Westbone thanks...I just needed confirmation that the 'red' boards are the same on all 3 options, they look similar but on closer inspection are slightly different.

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: Early active gain circuitry

Post by Sgt. Vimes on Mon Aug 04, 2014 12:43 pm

So which circuit do you have?  The only difference with your existing pots and switches should be the active on/off switch is a 12 terminal 4pdt for the gain circuit,  I think.....

Sgt. Vimes
Financial supporter

Number of posts : 3101
Age : 45
Location : tyneside
Registration date : 2011-11-03

Back to top Go down

Re: Early active gain circuitry

Post by Catalyst on Mon Aug 04, 2014 12:54 pm

Sorry, I'm making this difficult aren't I   Smile
I have the 12 terminal 4pdt etc that goes with V1 in my guitar but no board or loom....but the board/loom that Clive has sent me is out of a V2 thunder as it has no 12 terminal 4pdt.
Can I simply take the red board out of Clive's V2 arrangement and use it in a V1 set up?

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24
