AP II LC440

Post by corsair on Sat Oct 25, 2014 8:12 am

Guess who's got one of these?!

That's right... I have... you wanna see it?

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by Westbone on Sat Oct 25, 2014 2:37 pm

Sounds a bit Rolf Harris!! Suspect

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: AP II LC440

Post by Barry on Sat Oct 25, 2014 8:39 pm

It's a Mats, so...yes.


But you'll need to do a humbucker excision on that bad boy.

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6027
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: AP II LC440

Post by Sgt. Vimes on Mon Oct 27, 2014 9:37 am

Yes, yes we do!

Sgt. Vimes
Financial supporter

Number of posts : 3102
Age : 45
Location : tyneside
Registration date : 2011-11-03

Back to top Go down

Re: AP II LC440

Post by Westbone on Mon Oct 27, 2014 1:01 pm

Is it green? Will we ever 'king know!.. Laughing

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: AP II LC440

Post by Sgt. Vimes on Mon Oct 27, 2014 1:02 pm

He probably forgot all about it, given his age and whatnot

Sgt. Vimes
Financial supporter

Number of posts : 3102
Age : 45
Location : tyneside
Registration date : 2011-11-03

Back to top Go down

Re: AP II LC440

Post by Barry on Mon Oct 27, 2014 1:45 pm

I think he's removing that centre pickup for me.
There's a good lad!

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6027
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: AP II LC440

Post by Westbone on Tue Oct 28, 2014 12:56 am

Probably gone for a 'Walkabout'

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: AP II LC440

Post by Sgt. Vimes on Tue Oct 28, 2014 3:09 am

Coffee Drinker

Sgt. Vimes
Financial supporter

Number of posts : 3102
Age : 45
Location : tyneside
Registration date : 2011-11-03

Back to top Go down

Re: AP II LC440

Post by corsair on Mon Nov 03, 2014 8:53 pm

Well, here it is for those who want a look...

http://www.matsumoku.org/ggboard/viewtopic.php?f=11&t=12383&start=10

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by Westbone on Tue Nov 04, 2014 3:33 am

Do like the finish on that much better than green.

It's no carved top though. That there is known as a 'cave top'

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: AP II LC440

Post by corsair on Wed Apr 15, 2015 1:45 am

... and here we are. Mostly done with all of the hardware swapped out for black rather than the tatty gold. I like it loads, and it plays beautifully, low and slick with loads of tone; nice!









Gotoh bridge and locking tuners, SG knobs and black Schaller straplock buttons to come.
I think it was originally wired as a 3V/1T but has been modified at some stage previously; I may at some stage put it back to standard but at the moment, I like it just fine the way it is!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by Westbone on Wed Apr 15, 2015 1:53 am

Black suits it.. Smile

3V, 1T + coil tap

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: AP II LC440

Post by corsair on Sun Apr 26, 2015 11:38 pm

Yeah, I think so, eh!!

OK... how does the addition of the coil split switch differ from this diagram?



Thanks, troops!!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by gittarasaurus on Mon Apr 27, 2015 8:28 am

the diagram does not show the center tap for each pickup
you could use one of these switches

to wire the switch;
connect ground to all the lugs in the center row
connect center tap wire from each pickup to it's own lug on one side row

all three pickup connections on the same side, the four lugs on the other side remain unused

gittarasaurus
Financial supporter

Number of posts : 1207
Location : San Jose, CA
Registration date : 2011-05-25

Back to top Go down

Re: AP II LC440

Post by Westbone on Mon Apr 27, 2015 10:38 am

Your mini switch in there a 3pdt? 9 lugs?

From each pup a white and a red?

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: AP II LC440

Post by corsair on Mon Apr 27, 2015 4:45 pm

@Mike... Yes, I know it doesn't show the coil tap; it is, however, the closest one I've found to what my guitar should be! Assumedly, then, the switch that's in there is the original and can be wired the same way younsuggest?

@Damian... yep, and yep. The red wires at the moment are just loose in the cavity.

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by Westbone on Mon Apr 27, 2015 5:20 pm

wire all 3(red) to middle of the mini switch
common to all one side of switch
wire the now 'floating' white as per the other two pups on the volume.


Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: AP II LC440

Post by corsair on Thu May 14, 2015 4:14 pm

Thanks, all; I shall crack on and get it done when I find a hour or two spare!!

Gotta love this site, eh!!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by corsair on Sat Sep 19, 2015 6:08 pm

OK.... back on this now!!

Damian, so if I understand correctly, what we're doing here is just sending that signal on the red wire straight to earth, thereby shorting out half the humbucker, yes, and that the middle pickup is never on, on its own? It's more of a blend thing by altering the volume?

There's no way, is there, of having that 3pdt switch select between h/b - s/c for each pickup individually, and having each pickup selected individually while retaining that 3 way pick up selector? It would have to be a 4 way....

Sorry to bang on about this, but I'm having trouble understanding what the rationale here is!! The 2 diagrams above - the 3 h/b one and Damians' addition - make perfect sense and given that no-one I've been able to contact knows EXACTLY how this is wired OEM, it is the way I will proceed!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by Westbone on Sun Sep 20, 2015 5:16 am

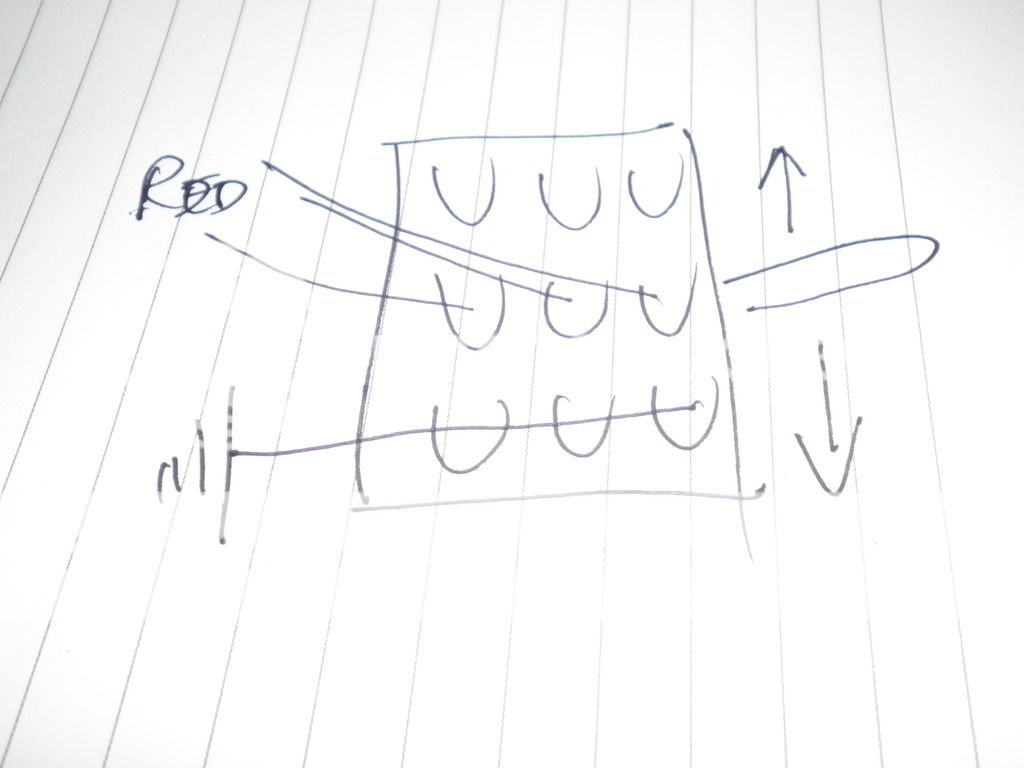

They originally had a coil tap on all pickups.

That's what my sketch is.

Hence you have 3 floating red wires.

Or leave the middle pup off the coil tap switch, experiment...Cool

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: AP II LC440

Post by Catalyst on Sun Sep 20, 2015 6:09 am

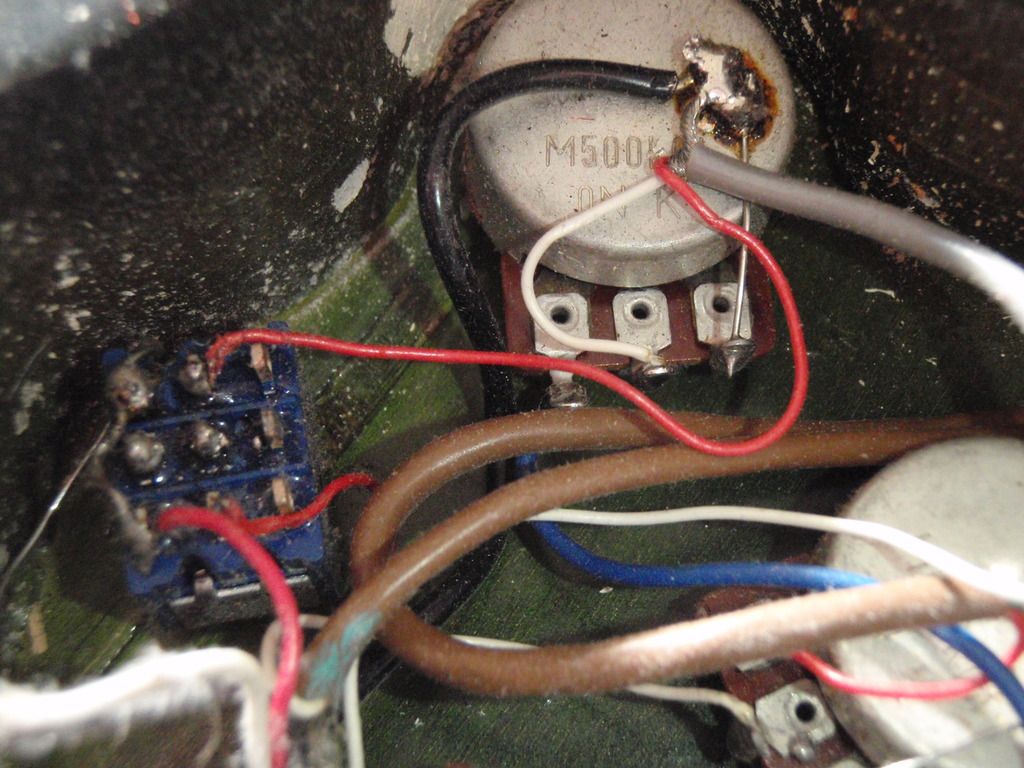

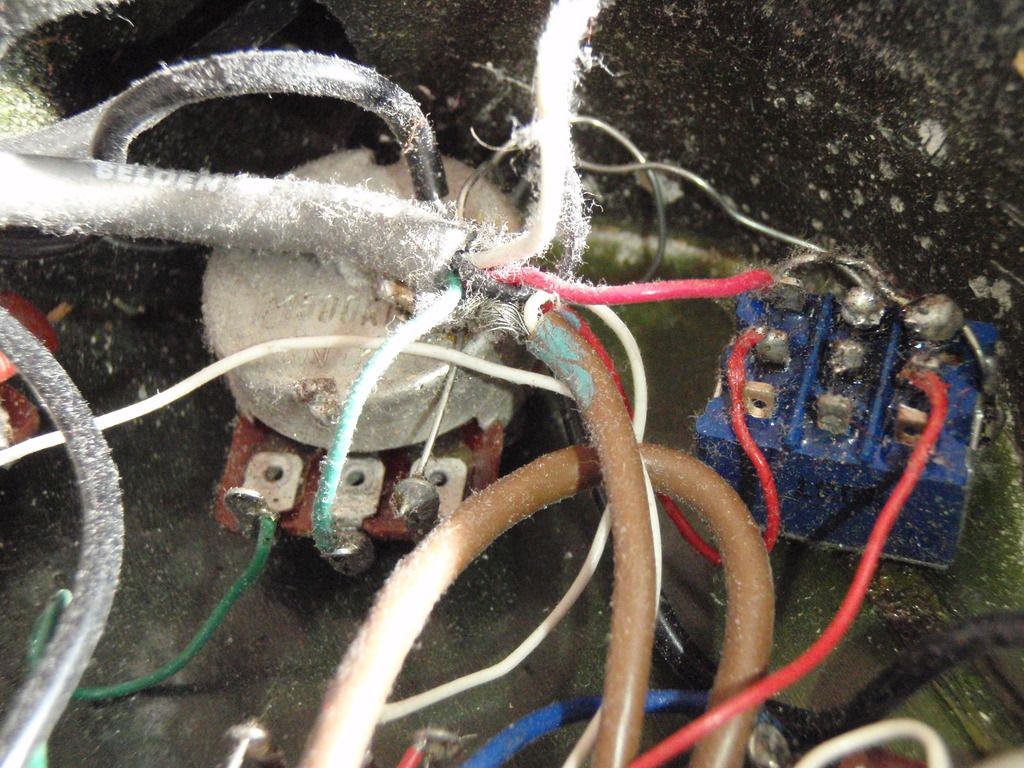

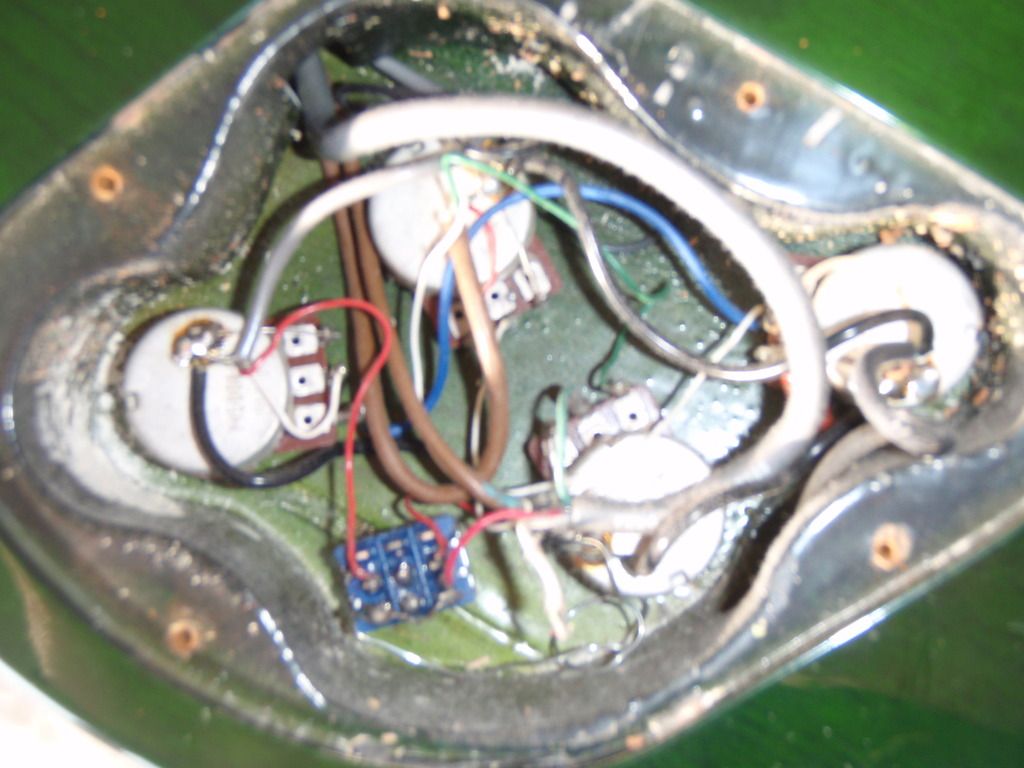

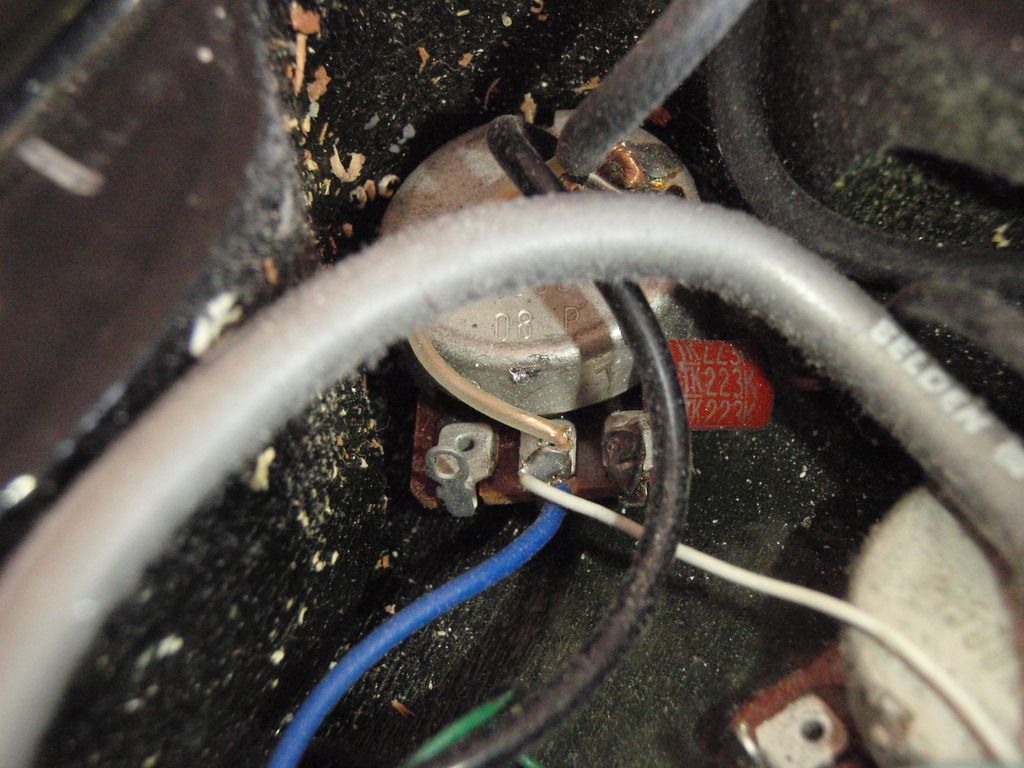

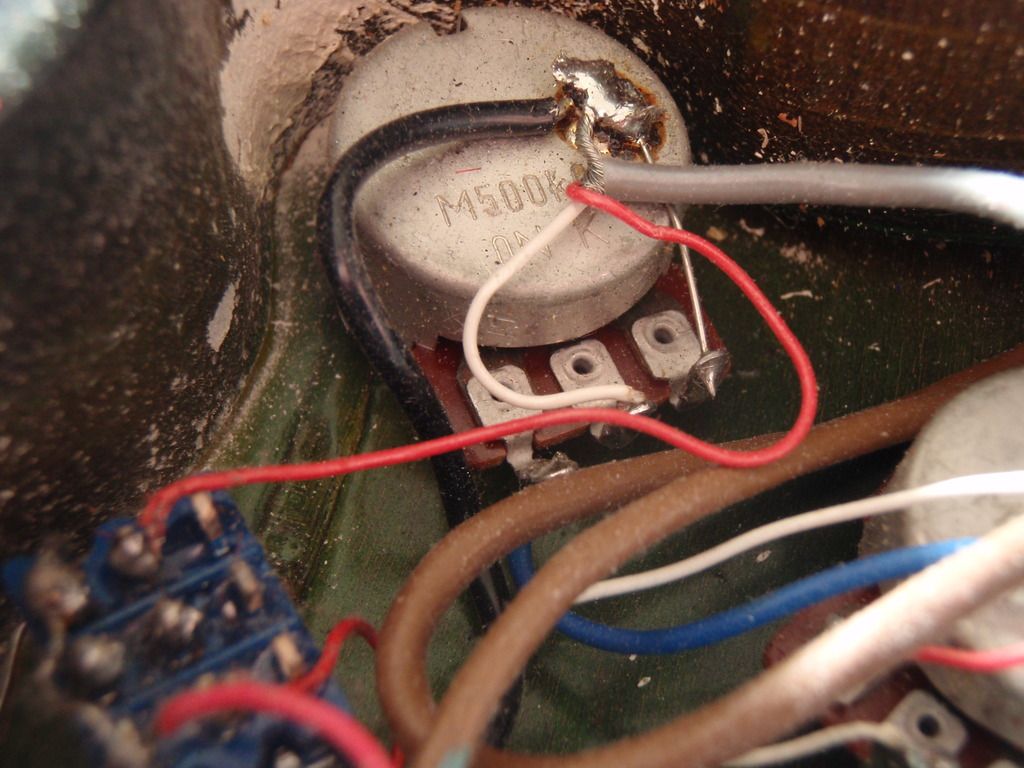

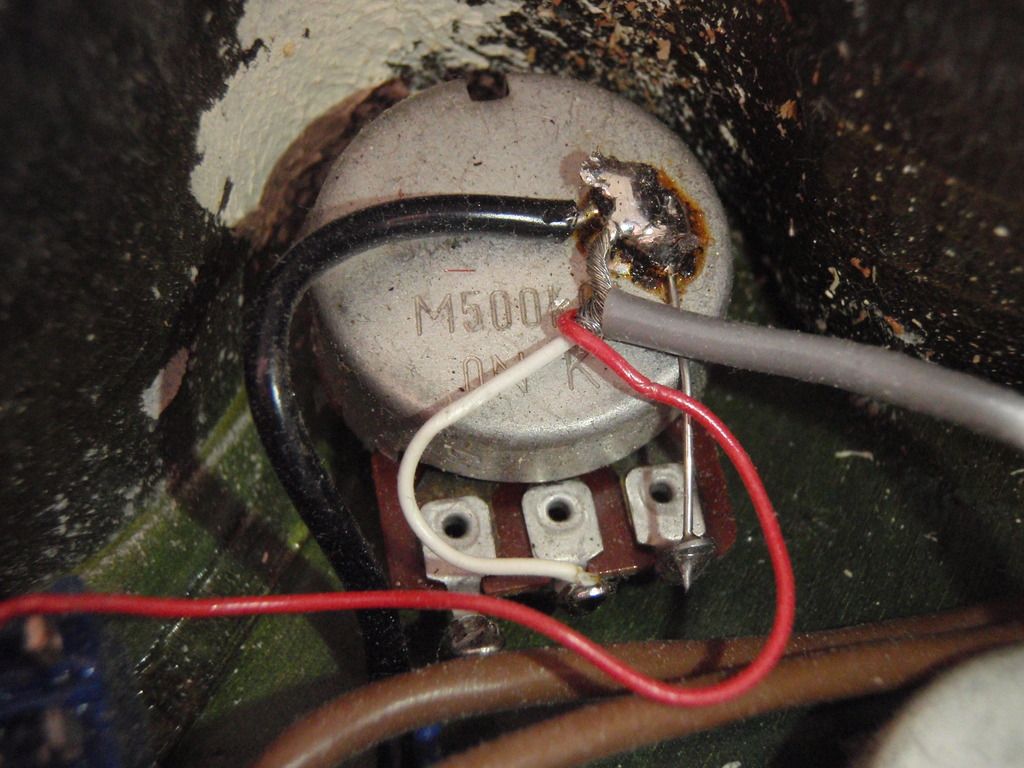

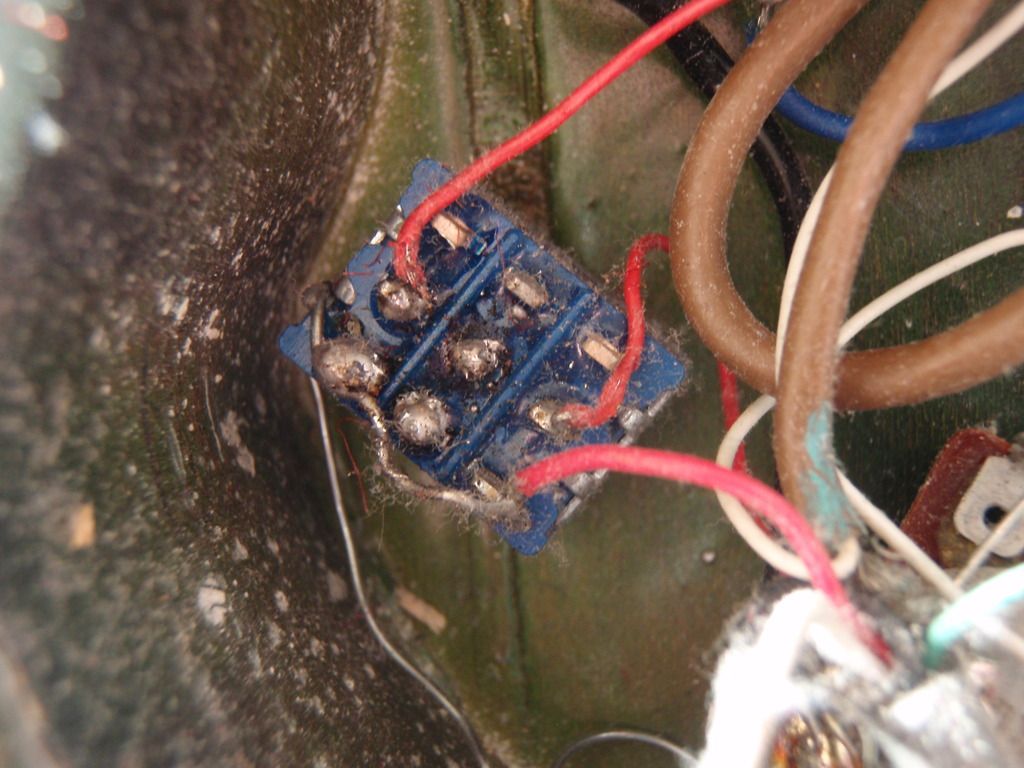

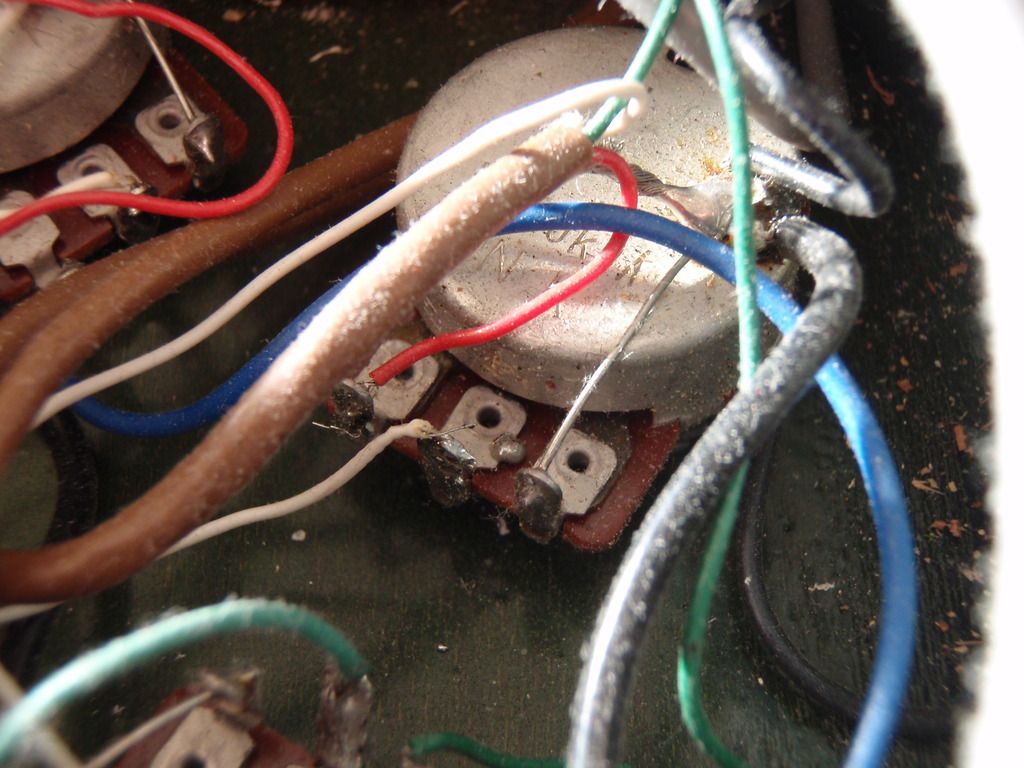

Maybe these photos will assist, as far as I am aware this is original.
I understand from the previous (and only) owner that the bridge pup was replaced with a period DiMarzio but the wiring configuration remained.












As you can see from all the dust, not been tampered with recently  Smile

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: AP II LC440

Post by corsair on Sun Sep 20, 2015 6:41 am

Good on you both!! Hells teeth.... what is going on with that mini switch?!?!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by Catalyst on Sun Sep 20, 2015 7:18 am

Funny you should ask....

It appears my electrics are all over the shop as well. I seem to have 2 volume control knobs for the neck pickup...and none at all for the bridge... scratch

I'd just fiddled around with them in the past until I got it to sound right... Laughing

So I guess mine must have been altered when he put the Dimarzio in. Looking at the mini switch it appears that a red wire might have been removed from the centre lug?
The plot thickens....

Are we assuming that the OEM had 1 tone and 3 volume knobs?

In which case mine is way off.

Catalyst
Financial supporter

Number of posts : 318
Registration date : 2013-02-24

Back to top Go down

Re: AP II LC440

Post by Westbone on Sun Sep 20, 2015 8:14 am

How does the Dimarzio sound, thin?

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: AP II LC440

Post by corsair on Sun Jan 10, 2016 3:30 am

I think I may have a solution to this. The middle pickup wired straight to the output, and the neck and bridge wired traditionally, ie n/n&b/b.

Reports soon..

*later*

... and all is well!! I've done what I set to do and restore to some semblance of normality, and given that no-one actually knows empirically how these were set up originally, I'm well pleased with the results.

As stated above, the 3way is standard LP, ie n/n&b/b with the middle straight through it's volume pot to the output. This means that the middle is always on - and can never be on by itself - but it's output can be blended with the others or just turned right down. Simple, really, though it gave me conniptions trying to work out how it worked with the hardware it has.
Thanks to Damian, the coil taps work a treat but will never be mistaken for single coils; they have far too much heft to them!! H/B values are about 11.5kΩ for each; I have other guitars with the same value pickups that do not sound anywhere near as muscular... the wood, perhaps; the main body is mahogany.

Anyway, it's now inside on the rack with my Spectrum GTBass and 2 Vantages - the 12 and a VA 30 acoustic; a regular Matsumoku gathering! I've got most guitar sounds covered, eh!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by corsair on Mon Jan 11, 2016 5:46 pm

Ooooh... this is really nice! I've never given a hell of a lot of thought to the difference the wood makes to the sound, but this thing has a mahogany body with a sycamore top and is just epic!!

Oddly, too, I've found the shape quite comfy to play after 30+ years of guitars with upper horns...

If you see one of these APII LC transition models, I suggest that you buy it!!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5213
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: AP II LC440

Post by Barry on Mon Jan 11, 2016 9:15 pm

I love mahogany in a geetar. Thumb Up

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6027
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: AP II LC440

Post by Sponsored content Today at 7:43 am


Sponsored content


Back to top Go down

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
