Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by The Chad on Thu Mar 26, 2015 9:30 pm

A quick tip for anyone who needs to remove bridge bushings.

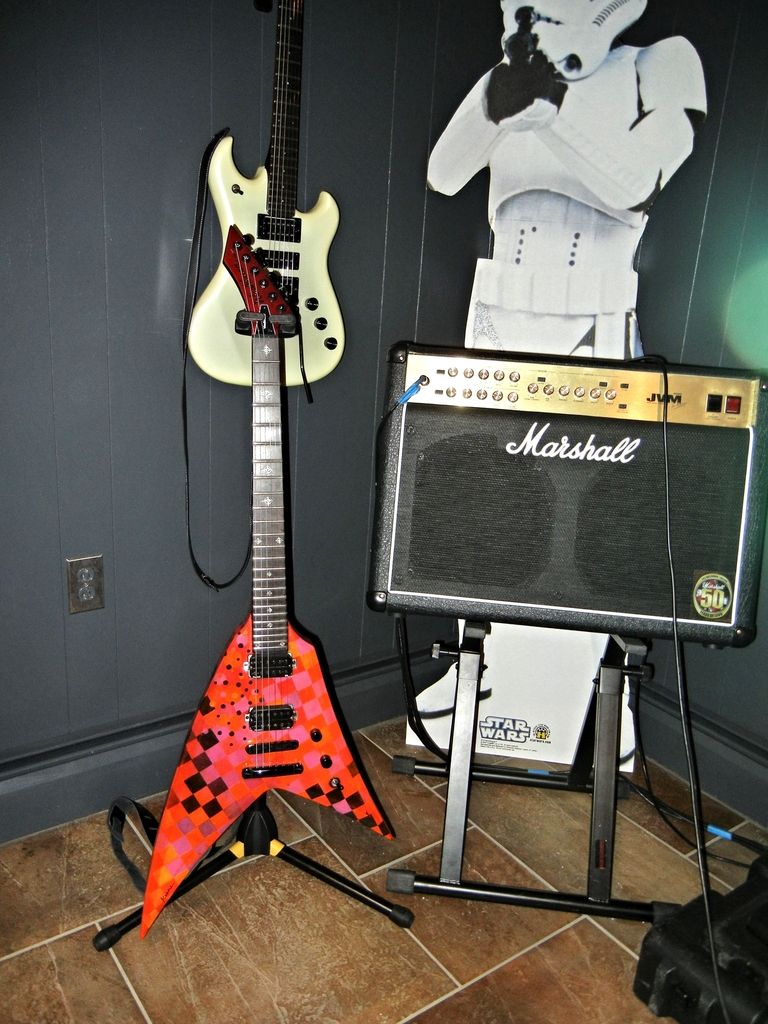

Bought this cool custom painted Washburn (not a Westone, but this info will help us all).
The bridge ground wire was off of the post!
Had to pull the bridge post bushing.

(Bridge post and bushing is shown in the center of the photo)

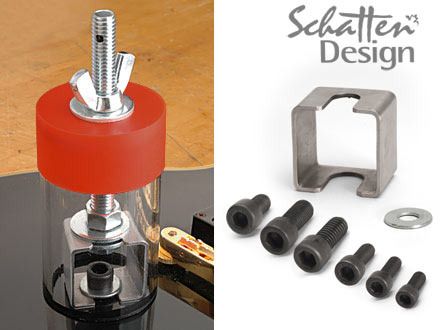

Well, you can buy one of these from StewMac for $54.00.

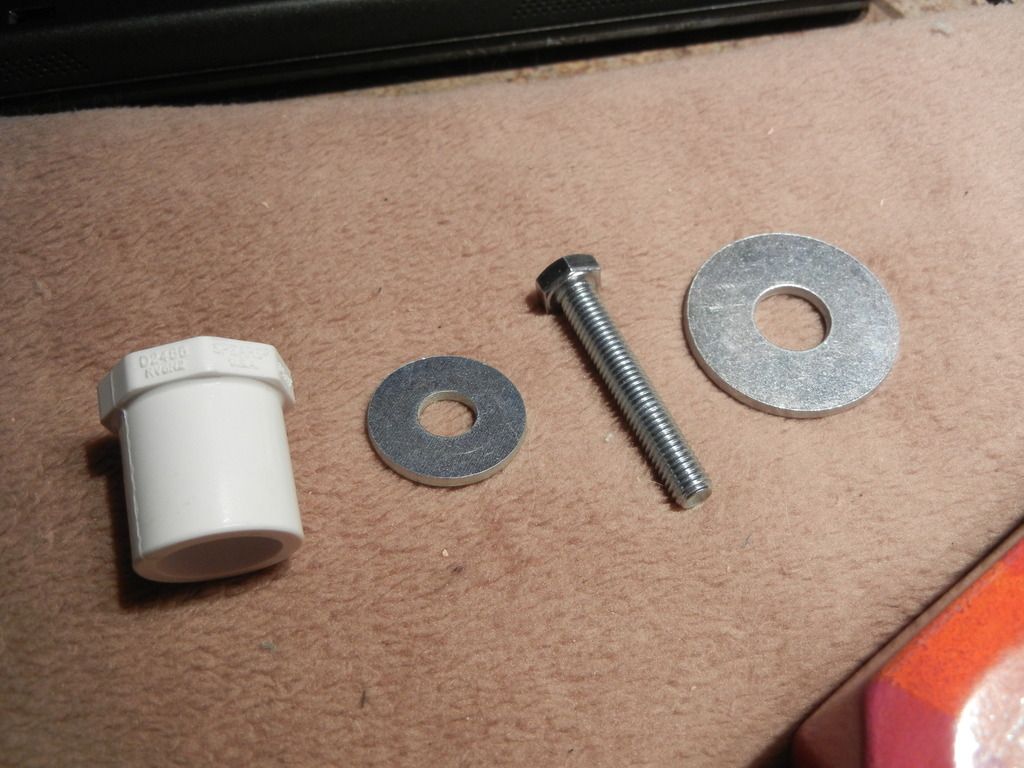

Or you can go to your local hardware store and buy these items...





Cost me only $2.39.   Make sure the bolt is the same size and thread as your bridge post.

Here's what I did.  Removed strings, removed bridge.  Removed the bridge post.

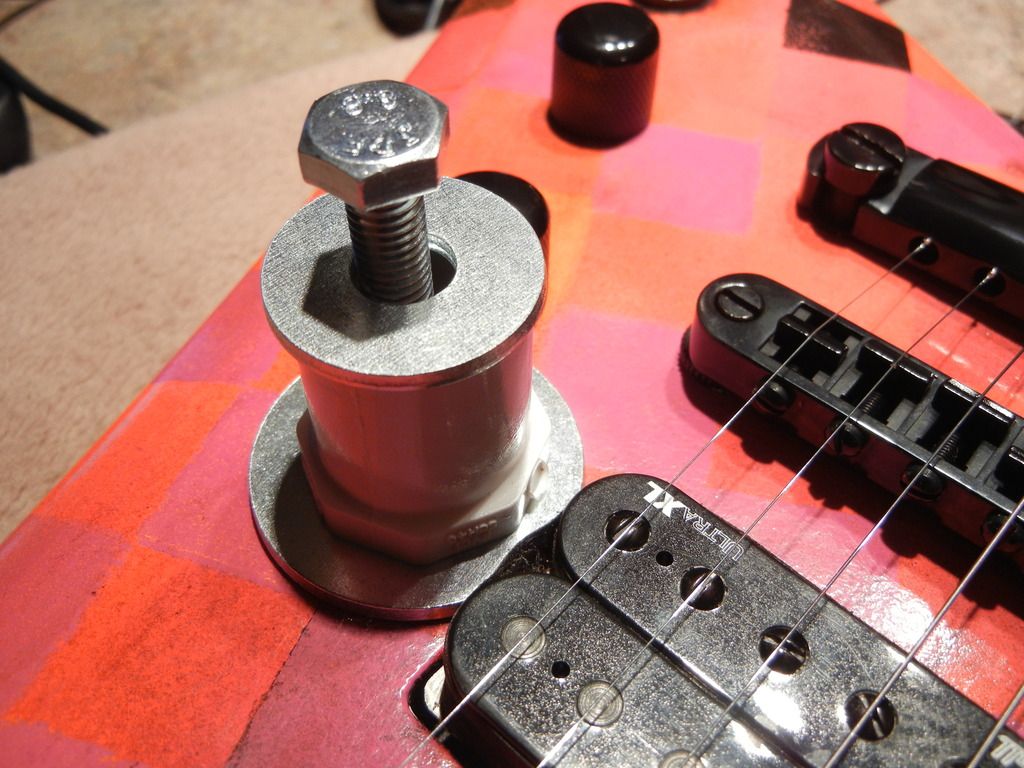

Assembled the items like so....





I then placed my home made assembly over the empty bushing hole, screwed the bolt down inside of the hole, and using a wrench (spanner for you lot across the pond) tightened the bolt which was now in the bushing.  This gently and steadily raises the bushing out of the body as you tighten the bolt, and in a very clean manner, removes the bushing.

Then I could reconnect the damaged bridge ground wire and get back to what really matters...
Plugging it in and JAMMING!








 Metal Head

The Chad
Financial supporter

Number of posts : 2453
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by corsair on Fri Mar 27, 2015 5:29 am

Oddly enough, I've just done this exact job on an APII LC440 to replace the worn gold one with a black one, and then had to remove the 2 4mm bridge screws by the 2 nuts tightened together method... worked a treat and now - once my locking tuners arrive - I'll be ready to make much noise!!

Anyone wanna see the thing in question?

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5209
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by Westbone on Fri Mar 27, 2015 6:20 am

corsair wrote:
Anyone wanna see the thing in question?
Is the Pope an Argentinian? cyclops

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by The Chad on Fri Mar 27, 2015 8:43 am

That's the cool 3 pickup flame top, right?  Great looking piece.  I tell ya, locking tuners make a difference.  They did on my two Electras!  A major difference, actually.

The Chad
Financial supporter

Number of posts : 2453
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by corsair on Fri Mar 27, 2015 8:53 am

I'm a believer, mate; I really am!

However, be careful of some of the cheap Schaller copies out there because they're cheap for a reason, eh!! I bought a couple of sets of Schecter marked lockers and they're good, but a set of no-name lockers at a knock down price are very ropey indeed... loose components and a rattley cheap feel: avoid!
The APII is getting Gotoh lockers to match the Gotoh Bridge and tailpiece....

And my bushing puller consisted of 2 washers I had laying about, a bit hacksawed from an old towel rail and a 75mm x 6mm bolt I had in my bolt collection: net cost = pennies!!

King of the cheap bastids, I am!!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5209
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by Westbone on Fri Mar 27, 2015 9:32 am

Always used a crow bar honestly!! I'd never use metal on a painted wooden surface. Always a wooden block with a cloth.

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by The Chad on Fri Mar 27, 2015 9:37 am

Crow bar?!  Hey, if it works!  Why not.

I should've said that I'd put paper between the washer and guitar finish, forgot to add that.

The Chad
Financial supporter

Number of posts : 2453
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by corsair on Fri Mar 27, 2015 9:40 am

Goes without saying that there's a pad underneath the washers, eh?? I'm cheap, not stupid!Very Happy

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5209
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by The Chad on Fri Mar 27, 2015 9:40 am

cheers

The Chad
Financial supporter

Number of posts : 2453
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by Westbone on Fri Mar 27, 2015 10:03 am

In retrospect, eh! Laughing

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by Barry on Fri Mar 27, 2015 10:14 am

One of the several small "cool tools" I use all the time from StewMac is the ESP Multi Spanner. I keep finding new uses for it, including prying up stubborn posts!

Great little tool, and at under $15 it appeals to my cheap bastid gene! Twisted Evil

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6023
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by The Chad on Fri Mar 27, 2015 11:01 am

Great idea!

The Chad
Financial supporter

Number of posts : 2453
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by corsair on Sat Mar 28, 2015 3:09 am

Nearly there... the re-painted pickguard bracket is still drying, the brass nut needs to be affixed and the tuners have yet to arrive.. otherwise, we're done here! Should I colour the pickup poles, or not?


_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5209
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by The Chad on Sat Mar 28, 2015 2:30 pm

I like the pickup poles shiny, looks mean that way.  Cool

The Chad
Financial supporter

Number of posts : 2453
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by Westbone on Sat Mar 28, 2015 4:30 pm

Shiny poles.

Black suits it... Smile

Control knobs just look too big though???

Westbone
Financial supporter

Number of posts : 4778
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by corsair on Sat Mar 28, 2015 6:39 pm

Right-o; shiny poles it is!!
@Damian; I found those in the local music shop and they are the exact type that came off the guitar and are only a tiny bit bigger than the usual Gibbo speed knobs but yeah; they don't look quite right, do they?! Not bad, but not ideal, if you know what I mean....

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5209
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Removing bridge bushings (post sleeves) - Cheaply and safely!

Post by The Chad on Sat Mar 28, 2015 7:53 pm

Look like Strat knobs from here...

The Chad
Financial supporter

Number of posts : 2453
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down
