Post by corsair on Mon Jul 13, 2015 1:04 am

Right. Kids are back at school - YAY! - so I hied me forth to the shed to have a look at something that's been bugging me since forever... in that the Pantera has a backwards wired switch, i.e. the middle position gives the neck p/u and the top position gives the middle p/u. I know, I know; it's not a major but it has bothered me forever so let's have a look at the thing....



... this was my fast and dirty solution.

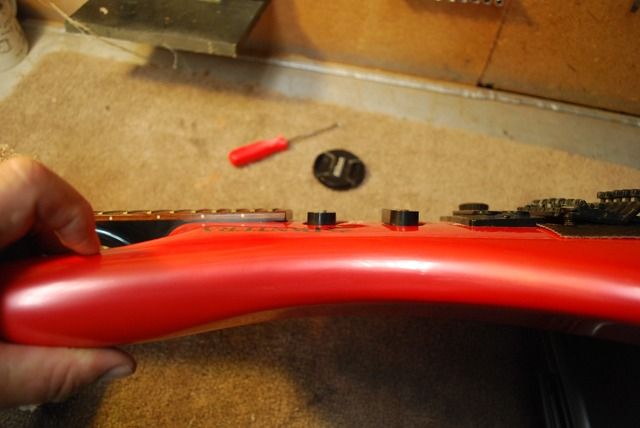

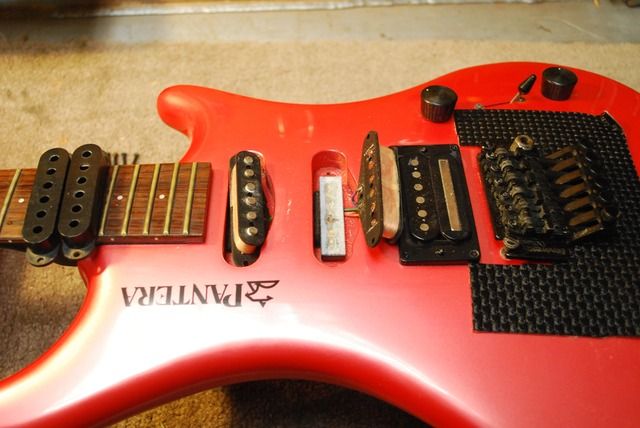

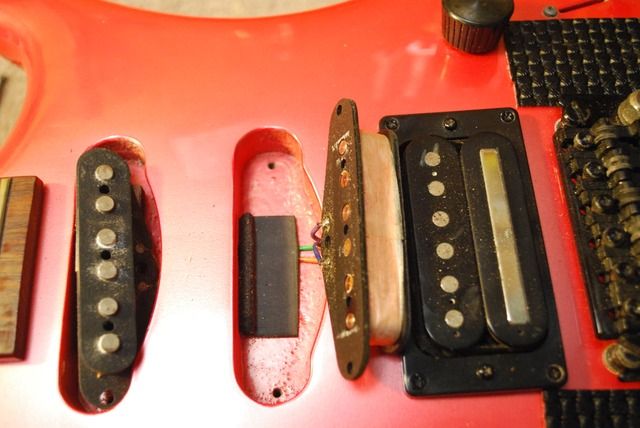

middle and neck out. They have never, ever been lifted, I reckon; the magnets pulled off the bottom of the coils! Note the litttle rubber foot in there. The p/us have no adjustment springs and are set really close to the line of the top of the fretboard...



A little surprised as I would have guessed they'd have been adjustable??

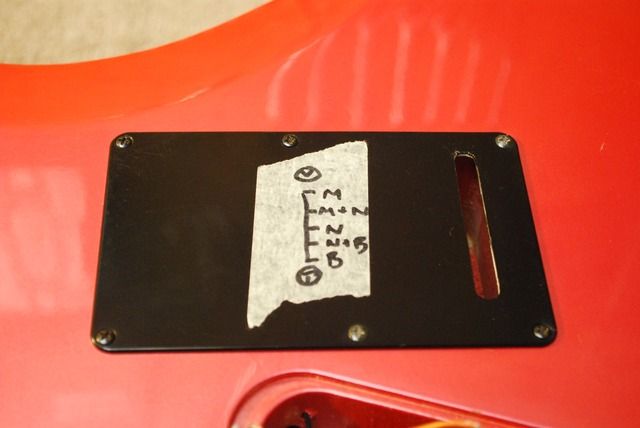

Anyway, having gathered the colours of the wires, I whipped open the cobtrol cavity, located the appropriate wires on the switch terminals and swapped 'em!



... here in unswapped mode!

Then having noticed that the 45 seemed a little weaker than I remembered - yes, Dorothy; I actually played it before removing the strings!! - went to take it out of circuit and measure the voltage and found that my bloody meter has died of a flat battery...

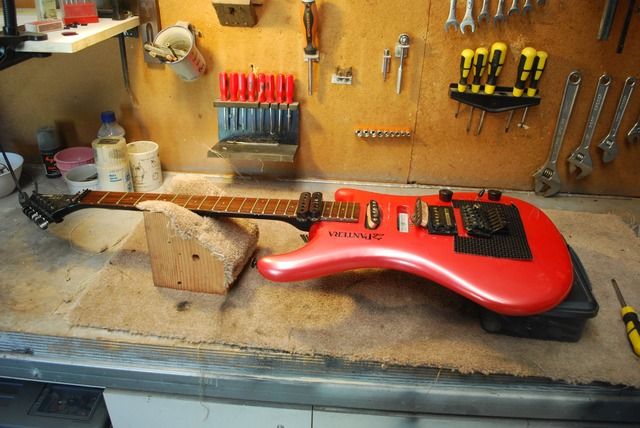

So at the moment it is sat on the bench, getting the fretboard oiled, awaiting a new 9V battery for further testing....
