XA1630 Humbucker???

Post by hockeylover1397 on Sat Mar 19, 2016 11:25 am

Have any of you seen the humbucker in any of the westone guitars that reads "AL 76"? I just pulled mine out and figured it would be an a 45.

I have confirmed that the wiring schematic is identical to the one shown for my model, just really wondering if that is a known model of pickup.

I'm currently trying to breathe new life into my old (and ill maintained for about 15 years), and noticed I'm getting little or no sound. Rust on all the pups and in the process of testing pups. Need to also check pots.

Anyway, I'll work on posting some pics when I get a chance, but I'm the second owner of my XA1630 (which I believe is all original) when I got it from a sorry lad while in the US Navy back in 1988. He needed money for an engagement ring! So I bought the XA1630 and his Crate 60W amp for I believe $750.

Also, if I do need to replace any of the pots, and ideas on a good maker of similar replacement parts? I checked stewmac and their analog pots don't appear to look the same and the ones currently installed with the extended coil.

Thanks for all the help and I'll post more in a bit...oh, and most people call me Mullet (I'm still having issues letting go of the 80's).

hockeylover1397
Newbie

Number of posts : 1
Location : lost
Registration date : 2016-03-18

Back to top Go down

Re: XA1630 Humbucker???

Post by corsair on Sat Mar 19, 2016 5:09 pm

Welcome here, Mullet!

Nope, sorry; AL76 is unfamiliar to me as a pickup for the Genesis II, or in fact for a Westone! I thought they were 45s, too, though mine has an oddball prototype humbucker and is, in fact, an orphan anyway....

Yeah... those little coils on the pots make life interesting, don't they?! I was told what they do many years ago but I've forgotten and will try to find the info. I'm sure some of the lads will know.... but I don't know of any replacements. Loads of contact cleaner - not, and never WD40 or similar!! - into the pots should clean'em up.
The metalwork with rust is just a matter of elbow grease to clean them up and then a quick paint if it needs it!

Yeah; I"d love to see yours; mine is an aged white job with a really flat neck and is probably the guitar I'd gig these days!

Ahhh... found this... from 2008....I need to get a life, really....

http://westone.netboarder.com/t267-genesis-ii-pickups-and-progress?highlight=genesis

... there's other info there if you type "genesis" into the search window in the Technical section...

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5248
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: XA1630 Humbucker???

Post by Westbone on Sun Mar 20, 2016 6:44 am

Does the AL 76 pup connect with a white plastic plug?

Clean up the jack socket, it'll probably work.

Westbone
Financial supporter

Number of posts : 4858
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: XA1630 Humbucker???

Post by Westbone on Wed Mar 23, 2016 5:28 am

Whilst looking for old photos I found these from my Genesis II.
Look familiar...cyclops



Westbone
Financial supporter

Number of posts : 4858
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: XA1630 Humbucker???

Post by corsair on Wed Mar 23, 2016 7:43 am

OK.... I'll have to go andlook at mine, now!!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5248
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: XA1630 Humbucker???

Post by Barry on Wed Mar 23, 2016 12:59 pm

When I see that green epoxy on the screws it reminds me of a UBC. affraid
I'm assuming it ain't! Do you have the DC reading handy?

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6120
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: XA1630 Humbucker???

Post by David_A on Wed Mar 23, 2016 1:40 pm

A bit off topic, but I was wondering - what is the purpose of the lower level in the top surface of the Genesis? I've seen something similar on bass guitars, but I thought that was to aid string 'pulling'?

David_A
Westone Nut

Number of posts : 85
Age : 67
Location : Cheshire
Registration date : 2014-10-26

Back to top Go down

Re: XA1630 Humbucker???

Post by Westbone on Wed Mar 23, 2016 2:28 pm

Barry wrote:When I see that green epoxy on the screws it reminds me of a UBC. affraid
I'm assuming it ain't! Do you have the DC reading handy?
Mine is stashed away Barry, haven't even seen it for a few years.

Maybe John can check he's out if the same.

As for the green epoxy sealer seen the same on MMK's also.

Westbone
Financial supporter

Number of posts : 4858
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: XA1630 Humbucker???

Post by Westbone on Wed Mar 23, 2016 2:34 pm

David_A wrote:A bit off topic, but I was wondering - what is the purpose of the lower level in the top surface of the Genesis? I've seen something similar on bass guitars, but I thought that was to aid string 'pulling'?

Check out the 1987 limited editions catalogue all will be explained.

Westbone
Financial supporter

Number of posts : 4858
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: XA1630 Humbucker???

Post by corsair on Wed Mar 23, 2016 4:40 pm

The routed top was probably done "because they could" with their CNC machinery!! Laughing

Later...

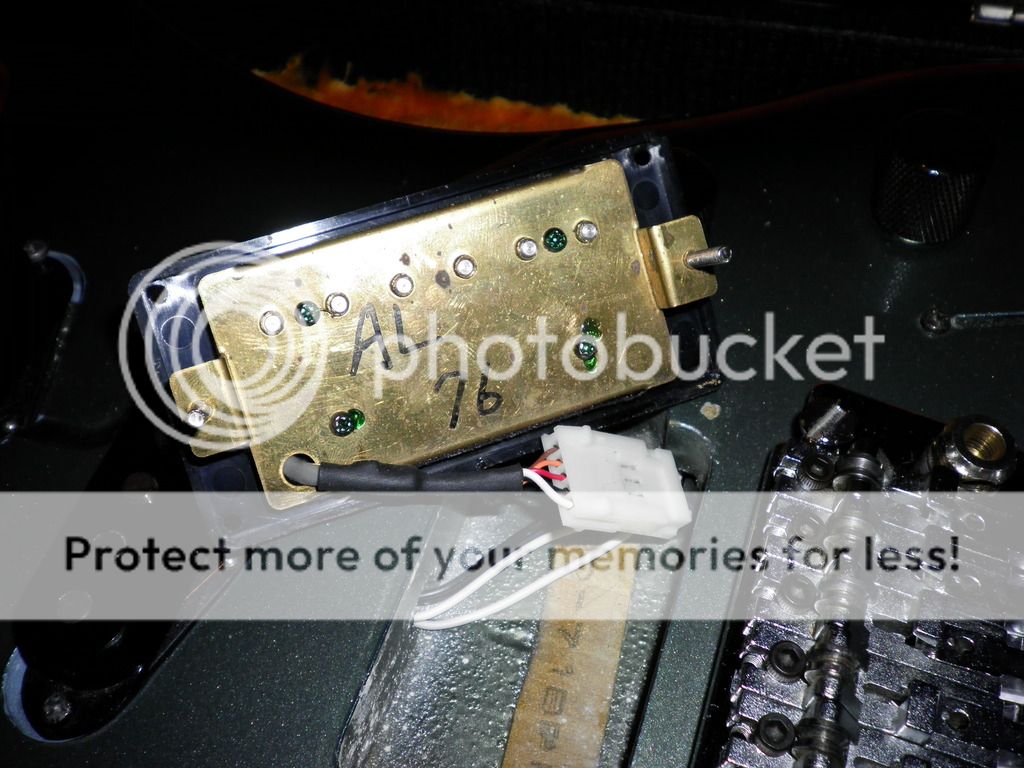

I've dragged mine out of it's case and taken the strings off, whacked the pickup out and here we go...



...just an "A" with no number...



.... the connector has orange, red, black, brown and an unshielded wires; the brown goes to the switch, the orange and red are twisted together and go nowhere, the black and the unshielded go to earth.





The fat cable you can see is the humbucker cable. I think my meter is in dire need of a new battery as I got a reading of 7.4KΩ with the pickup in circuit, but no reading whatsoever with the pickup out and disconnected?!

Neck pocket...



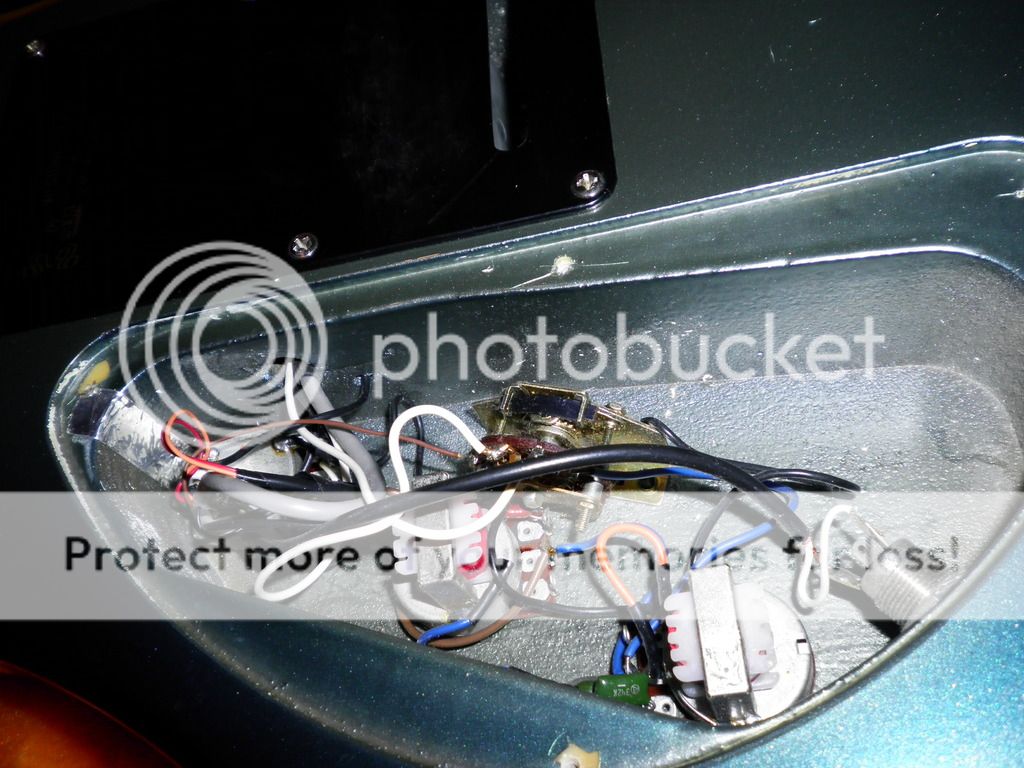

The coils on the tone controls...





.. I don't know if they're different, or indeed how to check for resistance/current/voltage/capacitance bu they have different value capacitors on them!



 Humbucker cavity....

All comments and/or recommendations gratefully received!
