Long travel bridge needed, where to find?

Post by The Chad on Mon Aug 08, 2016 2:04 pm

My Electra X930 Dickey Betts, a tune o matic bridge.

Problem... the D string won't intonate, the saddle doesn't go forward far enough (towards the neck).  I need a wide or long travel bridge.

Ideas on where I an buy one?

Thinking Don\'t Know

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by corsair on Mon Aug 08, 2016 4:39 pm

Have you tried reversing the saddle?

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5252
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Tue Aug 09, 2016 9:11 am

Absolutely, yes.  The high E and D are maxed out, the high E is fine however, the D remains flat.

I'm thinking about this... CLICK HERE for Wilkinson Roller Bridge.

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Barry on Tue Aug 09, 2016 10:26 am

The Chad wrote:...the D string won't intonate, the saddle doesn't go forward far enough...
Very odd Chad, especially from Mats. Normally it's the G string that gives you the grief on most guitars.

If you reversed the saddle and you're still flat have you checked the nut? Not likely a problem if it's brass but you never know. Slot depth OK? The Wilkinson bridge looks good as a possible fix, if it has a bit more throw.

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6128
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Tue Aug 09, 2016 10:52 am

It is odd, not good for Mats.  Never had this issue before.  I know what to look for, the common issues, none of them apply!  It's just that the bridge it a teensy bit too far back.

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Tue Aug 09, 2016 10:56 am

It's  top notch in every other way, it must have been made on a Friday.  Laughing

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Barry on Tue Aug 09, 2016 12:13 pm

Any chance of cheating a bit and using a longer screw or would you be off the bridge entirely?

edit: Never mind. Just looked at a picture of the guitar's bridge. geek

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6128
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Barry on Tue Aug 09, 2016 12:29 pm

Chad, I'm still scratching my head over this one. To clarify, is the saddle physically up against the edge of the bridge, or is the problem no adjustment left in the screw?

If the latter have you tried removing the spring? That will give you more length provided you have space available for the saddle to move of course.

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6128
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Tue Aug 09, 2016 12:42 pm

Already had the spring removed, and the saddle is all the way against the front of the bridge, physically cannot go any further.  The high E is the same way, yet that one is intonated just fine.

The problem is this.... the factory placed the bridge a little too far south, not allowing the bridge to have enough travel to intonate properly.  Surprising for a guitar this nice.

This X930 Vulcan Dickey Betts Model was the high end solid body model for Electra, absolutely nothing cheap about it, all solid with thick carved top (no ply or "pressed top" here, it's the real deal), heel-less bayonet set neck, MPC electronics, brass cavity covers, everything want in a Mat.  It's Presitge level if that makes sense.

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by David_A on Tue Aug 09, 2016 1:02 pm

Is this any good?
http://www.ebay.com/itm/NEW-Gotoh-GE103B-Nashville-Tune-O-Matic-Guitar-Bridge-CHROME-Tunematic-/191882829169

David_A
Westone Nut

Number of posts : 85
Age : 67
Location : Cheshire
Registration date : 2014-10-26

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by gittarasaurus on Tue Aug 09, 2016 1:32 pm

or maybe...

this one <-

gittarasaurus
Financial supporter

Number of posts : 1218
Location : San Jose, CA
Registration date : 2011-05-25

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Tue Aug 09, 2016 1:35 pm

Good call, that may work.  I don't know how it compares to the original however, it may be the same?

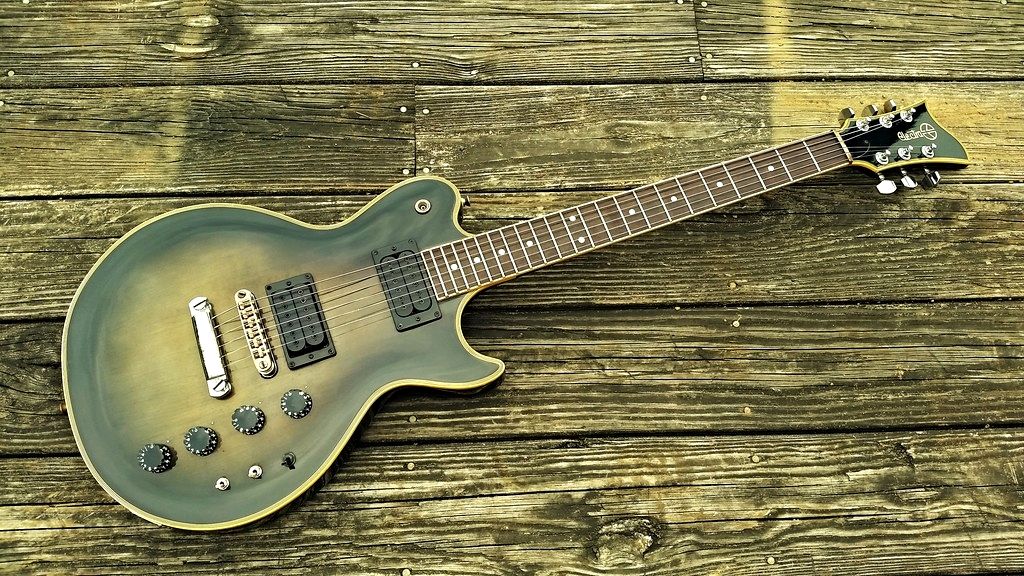

Here's the guitar, crackin' instrument I tell ya.  It has the MPC modules which are the effects, they are little boxes that plug into the back of the guitars powered by the guitars 9v battery.  I have several MPC's, and this Dickey Betts sounds the best.  Very strong and clear with the modules, making them very useful!

This was BEFORE intonation, so you'll see the saddles are not maxed out.  Picture this with the saddles moved further towards the pickups, with the D and high E maxed out.


The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Tue Aug 09, 2016 1:38 pm

Harmonica bridge is an option, it would look too different however.

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by David_A on Tue Aug 09, 2016 1:50 pm

That harmonica bridge is very expensive too. I bought a chrome one a few years back, cost me £40 as I remember, which I thought was a lot of money, but they were very difficult to find. I still haven't installed it on my old Les Paul; I wore the thing out and it needs a LOT of (expensive) restoration work before I can use it again.  pale

David_A
Westone Nut

Number of posts : 85
Age : 67
Location : Cheshire
Registration date : 2014-10-26

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Westbone on Tue Aug 09, 2016 4:09 pm

Nice guitar.

Check out the Schaller website.

Westbone
Financial supporter

Number of posts : 4860
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Barry on Tue Aug 09, 2016 4:15 pm

What a PITA! You shouldn't have ta spend a ton of money to correct something as basic as this on a top end instrument. No

Good lookin' axe BTW!

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6128
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Tue Aug 09, 2016 4:27 pm

I know, very odd.

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Adey on Wed Aug 10, 2016 4:16 am

I was going to say Harmonica bridge too, but they are usually fitted perpendicular to the strings and may look a bit odd as the tune-o-matic goes in at an angle.

Adey
Financial supporter

Number of posts : 234
Location : Horsham, UK
Registration date : 2014-01-25

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Wed Aug 10, 2016 4:23 pm

Alright... IF I do the gold Wilkinson... any ideas how I can tone it down?   It's WAY gold, lol.   Rub  it with steel wool?  Though that wouldn't get in the nicks and crannies.  Carefully applying a mile acid?

The original bridge is brass, I'd like to tone down the gold!

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Barry on Wed Aug 10, 2016 9:00 pm

I believe the usual approach for relicing/aging is to suspend it over a muriatic acid solution. Cover it, and just allow the vapours to mildly etch and dull the finish.
Don't actually immerse it.

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown


GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)

Barry
Hero, Legend, and all round good guy

Number of posts : 6128
Age : 71
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by gittarasaurus on Tue Aug 16, 2016 8:19 pm

how about one of these?
clik here <-

gittarasaurus
Financial supporter

Number of posts : 1218
Location : San Jose, CA
Registration date : 2011-05-25

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by David_A on Wed Aug 17, 2016 7:05 am

gittarasaurus wrote:how about one of these?
clik here <-
Wow that's a great piece of German engineering. It even allows you to adjust string spacing!

David_A
Westone Nut

Number of posts : 85
Age : 67
Location : Cheshire
Registration date : 2014-10-26

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by corsair on Wed Aug 17, 2016 8:19 am

I had a browse on the Schaller site when I was looking for a new bridge/tailpiece for my AP II LC440, and the stuff for sale in there was just glorious!
Their Hannes bridge is a work of art and I looked long and hard at the 3D-6 for my last Avenger, too!! Alas, the bridge to my door was about twice the price of the guitar....

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5252
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Wed Aug 17, 2016 10:09 am

I've bought a Wilkinson Roller Bridge, it may be arriving soon.  We'll see how this works.

I don't want to purchase a nicer bridge (like Schaller) and have it not travel far enough!

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Westbone on Wed Aug 17, 2016 10:28 am

Bridge travel on the Schaller is 12.5mm. Your original looks about the same.
Has the guitar always been 'off' as it looks intonated ok in the photo? Still with plenty of travel.

Have the Schaller on the front one.


Westbone
Financial supporter

Number of posts : 4860
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Wed Aug 17, 2016 10:44 am

That picture was before intonation.  Sad

Your Pantera on the right... that one has the bridge that I'm really after!  That is the long travel that some Mats came with stock.  If I could find one of those, I'd be the happiest.  Especially a gold one.

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Adey on Wed Aug 17, 2016 10:45 am

You seem to have too many of those Curly Maples in your possession.

I think one of them should be raffled off.   Smile

Adey
Financial supporter

Number of posts : 234
Location : Horsham, UK
Registration date : 2014-01-25

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Wed Aug 17, 2016 11:37 am

RAFFLE!!!

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Westbone on Wed Aug 17, 2016 11:40 am

£100 a ticket, 25 tickets, free shipping.....Cool...anywhere.

Westbone
Financial supporter

Number of posts : 4860
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Wed Aug 17, 2016 11:51 am

affraid

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Westbone on Wed Aug 17, 2016 3:52 pm

Shocking eh?...Twisted Evil

Only 'king jokin' but if you got a 350 at your door for a ton, would you complain???  Cool

Westbone
Financial supporter

Number of posts : 4860
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Adey on Wed Aug 17, 2016 4:31 pm

Westbone wrote:Shocking eh?...Twisted Evil

Only 'king jokin' but if you got a 350 at your door for a ton, would you complain???  Cool

If it was offered to me for that, I would have ripped their arm off as I took it off them.

Lucky bleeder..... Sad

Adey
Financial supporter

Number of posts : 234
Location : Horsham, UK
Registration date : 2014-01-25

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Westbone on Thu Aug 18, 2016 3:37 am

Adey wrote:
Westbone wrote:Shocking eh?...Twisted Evil

Only 'king jokin' but if you got a 350 at your door for a ton, would you complain???  Cool

If it was offered to me for that, I would have ripped their arm off as I took it off them.

Lucky bleeder..... Sad
No I paid a good bit more than a ton for it.

Was just saying, if I raffled it off at £100 a ticket someone would get a good deal....Wink

Westbone
Financial supporter

Number of posts : 4860
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Adey on Thu Aug 18, 2016 4:00 am

Ahhhhh....!

Adey
Financial supporter

Number of posts : 234
Location : Horsham, UK
Registration date : 2014-01-25

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Westbone on Fri Aug 19, 2016 11:57 am

The Chad wrote:That picture was before intonation.  Sad

Your Pantera on the right... that one has the bridge that I'm really after!  That is the long travel that some Mats came with stock.  If I could find one of those, I'd be the happiest.  Especially a gold one.
How much do you reckon the original is out by, a smidgeon or a lot?

Westbone
Financial supporter

Number of posts : 4860
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Fri Aug 19, 2016 4:23 pm

Why does this work?  Looks like it shouldn't, but it does!

[/URL]

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Westbone on Fri Aug 19, 2016 8:37 pm

Looks the part..Smile

Fully adjustable on the posts as well as the saddles.

Westbone
Financial supporter

Number of posts : 4860
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Fri Aug 19, 2016 10:11 pm

Real nice bridge actually,  guitar has noticeably more bite with it.  Note definition is greatly enhanced, best of any guitar I own.

I don't understand why the saddles need to be positioned in this manner to achieve intonation.  It looks wrong, yet it's spot on.  Neck is fine, nut is the right height,  so it must be the strings.   Ideas?

And the guitar looks brown in this photo,  it's not.   It's greenish.  Very odd that it looks so deep brown here, looks like a different guitar.

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by David_A on Sat Aug 20, 2016 9:25 am

I was going to suggest imperfect strings as the culprit, but I assumed you had already thought of that. In any case, it looks like you have ended up with a worthwhile improvement to what is already a very nice guitar. You can always re-adjust intonation after your next string change, if needed.
The colour in the picture is probably a result of the direct sunlight, which will enhance the warmer colours, i.e. browns.

I've just noticed that the intonation on my Rainbow is also quite staggered:

" />

David_A
Westone Nut

Number of posts : 85
Age : 67
Location : Cheshire
Registration date : 2014-10-26

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by corsair on Sat Aug 20, 2016 9:34 am

What is it, Chad? Certainly looks as if it is doing the business, eh!!

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.

corsair
Administrator

Number of posts : 5252
Age : 57
Location : Hervey Bay, Australia.
Registration date : 2008-04-08

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Westbone on Sat Aug 20, 2016 2:55 pm

Intonation is effected by all things ie. nut, action height, radius, string gauge and how hard you press, trus rod, frets... go figure...Wink

Westbone
Financial supporter

Number of posts : 4860
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by The Chad on Tue Aug 23, 2016 11:34 am

The Wilkinson Roller Bridge is really nice.  I may use them again, only as a replacement as necessary, however.

Interesting the difference in sound between all brass and whatever this Wilkinson is made of.  Quite a big change!  Science.  Smile

The Chad
Financial supporter

Number of posts : 2469
Location : Harrisburg, Pennsylvania
Registration date : 2011-02-01

Back to top Go down

Re: Long travel bridge needed, where to find?

Post by Sponsored content Today at 1:53 am


Sponsored content


Back to top Go down

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
