Post by richardempty on Sun Jan 22, 2017 2:12 pm

Hi. I have a Westone Thunder II Bass.

I want to replace the pickups because of the absurd hum and noise. Each stock single coil pickup has 4 wires coming out: orange, blue, red and green. So that 8 total wires coming out from the pickups.

I purchased a set of N3 Fender Noiseless Jazz pickups. Each pickup only has 2 wires coming out though: a ground and a hot. 4 total wires

How do I solder this thing? I've tried looking up diagrams but I dont see any for my knob configuration. I have 1 master volume, then the tone knobs for the Bridge and Neck are stacked on top of each other. So really, there are 4 tone knobs.

The tone knobs pull double duty for controlling the Treble and Bass. Dialing it clockwise turns up the treble. Dialing it counter clockwise turns up the bass. This goes for both the Bridge and the Neck. There is a Zero point where it evens out.
avatar
richardempty
Registered Member

Number of posts : 3
Registration date : 2017-01-22

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by Barry on Sun Jan 22, 2017 2:59 pm

Hi Richard and welcome!
When you are allowed to post, some pictures would help a lot, there were 3 versions of this bass.
Click here: Scroll down for Thunder II models.

New members are required to wait 7 days as an anti-Spam measure, but if you wish, send me your pix and I'll post them for you. Click on the link under my avatar.

Meantime, be aware that loud humming is usually the result of a bad ground (perhaps a loose solder joint). First place to look is the jack input. The second major cause is simple corrosion in the pots. That's usually cured with a few squirts of contact cleaner. Before you go gutting everything I'd check those items first. It could save you a major rewiring.

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown

GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)
avatar
Barry
Hero, Legend, and all round good guy

Number of posts : 6781
Age : 72
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by richardempty on Sun Jan 22, 2017 8:27 pm

Thanks Barry!!

The diagram here isn't an exact match because I dont have a phase shift. Everything else is the same.

It's a passive set up.

Two tone knobs. One volume knob. The ton pots are stacked. Check it!
avatar
richardempty
Registered Member

Number of posts : 3
Registration date : 2017-01-22

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by richardempty on Sun Jan 22, 2017 8:29 pm

I have the Thunder II version 3
avatar
richardempty
Registered Member

Number of posts : 3
Registration date : 2017-01-22

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by corsair on Sun Jan 22, 2017 9:41 pm

You say you have "stacked" tone pots? My understanding is that "stacked" pots are one on top of the other with the top knob being slightly smaller than the bottom one. Do you mean your bass has push/pull switches on the tone pots? Because that is a common Matsumoku thing; proper stacked pots are not... well, I've never seen them on a Matsumoku guitar!,

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.
avatar
corsair
Administrator

Number of posts : 5539
Age : 58
Location : Takura, Australia.
Registration date : 2008-04-08

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by Westbone on Sun Jan 22, 2017 10:21 pm

richardempty wrote:I have the Thunder II version 3
I volume, 2 PEQ tone controls.

PEQ = center dentent full humbucker.
Turn anti clockwise from detent = bass
Turn clockwise from detent = parallel

Both pickups are humbuckers= 4 wires each. Your Fender one's are single coil pickups.

Stacked pots look like this, yes? PEQ tone controls.

avatar
Westbone
Financial supporter

Number of posts : 5194
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by corsair on Mon Jan 23, 2017 2:09 am

There we go.

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.
avatar
corsair
Administrator

Number of posts : 5539
Age : 58
Location : Takura, Australia.
Registration date : 2008-04-08

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by Westbone on Mon Jan 23, 2017 3:52 am

corsair wrote:There we go.
Your thinking of the middle knob in the photo below, stacked bass/treble.

avatar
Westbone
Financial supporter

Number of posts : 5194
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by corsair on Mon Jan 23, 2017 4:49 am

Yeah; that's the one!! I've seen them on a guitar somewhere - can't remember where or when now - but never on a Matsumoku guitar, though I think maybe some of the top end stuff may have been so equipped... the likes of the ST1512??

...later

See here... it has stacked pots!!

http://www.matsumoku.org/ggboard/download/file.php?id=3478&mode=view

_________________
FWIW, an after market esoteric nut is a solution to a problem that doesn't exist, and a great way to convert your money into someone else’s.
avatar
corsair
Administrator

Number of posts : 5539
Age : 58
Location : Takura, Australia.
Registration date : 2008-04-08

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by Barry on Mon Jan 23, 2017 9:30 am

Thanks for that Damian.
Some pix from richardempty

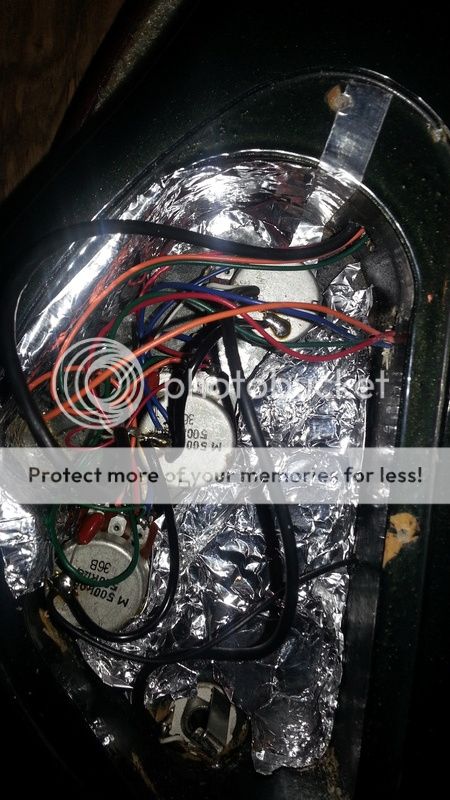

Control Cavity:


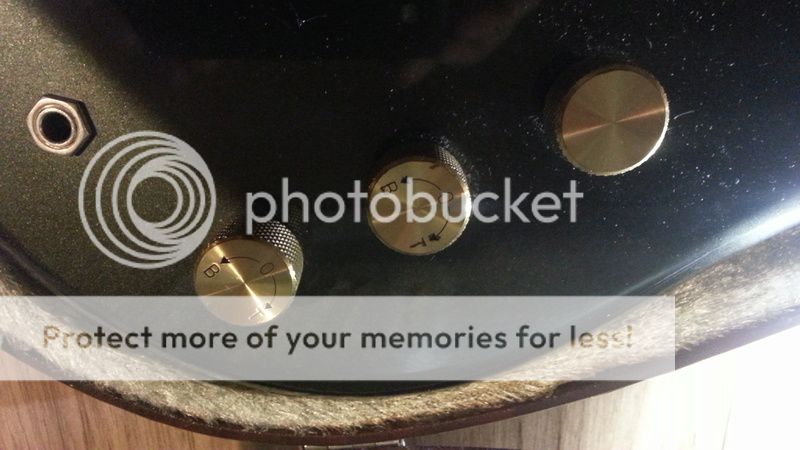

Yup, PEQ:


Schematic sketch:



And here's a little more (marketing) info on the PEQ circuit: LINK

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown

GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)
avatar
Barry
Hero, Legend, and all round good guy

Number of posts : 6781
Age : 72
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by Westbone on Mon Jan 23, 2017 11:12 am

Firstly I'd get rid of all that kitchen foil stuffed in there. Could cause a short. Might even be the problem.

The wiring diagram is for a Thunder II passive 6 string, should know I drew it.
avatar
Westbone
Financial supporter

Number of posts : 5194
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by Barry on Mon Jan 23, 2017 5:52 pm

Razz

_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown

GUITARS : http://legend.barryeames.com/guitars.html
MUSIC/PIX/VIDEOS: http://getback.barryeames.com (including Spectrum ST)
avatar
Barry
Hero, Legend, and all round good guy

Number of posts : 6781
Age : 72
Location : Port Weller, St. Catharines, Canada
Registration date : 2009-05-01

http://www.barryeames.com

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by Westbone on Tue Feb 07, 2017 5:52 pm

Wonder what happened with this guit?.... Thinking...more kitchen foil... Razz
avatar
Westbone
Financial supporter

Number of posts : 5194
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

Poll Re: Wiring single coil pickups 1 volume 4 tones

Post by Barry on Tue Feb 07, 2017 9:39 pm

That's the first time I've seen cooking foil used in a guitar cavity.

On the plus side it should help communications with the Mother Ship in high orbit. ba dum bum
